Shop BLUE SEA SYSTEMS

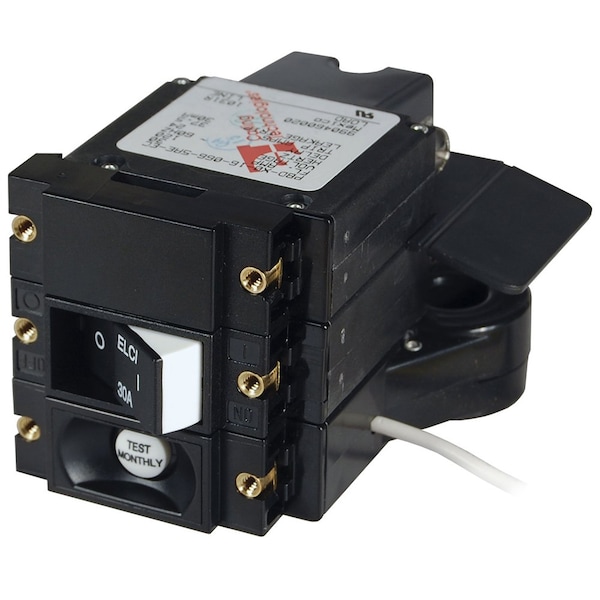

Circuit Breaker, A Series, 30A, 2 Pole, 120/240V AC, 5kA

  • Mfr # 3102100
  • Zoro # G102942823
product price:
$
504.99
/ea
Free Shipping & Returns

Key Features

Series
A
Amps
30 A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Actuator
Flat Rocker
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
3102100
Zoro #
G102942823
UPC #
632085310219
Country of Origin
Mexico

Details

Item
Circuit Breaker
Series
A
Amps
30 A
Number of Poles
2
AC Voltage Rating
120/240V AC
Circuit Breaker Actuator
Flat Rocker
Circuit Breaker Mounting Style
Surface Mount/DIN Rail
Max. AIR Rating
5kA
Trip Type
Hydraulic Magnetic
DC Voltage Rating
Not Rated

Description

A-Series ELCI Main Circuit Breaker - Double Pole 120V AC 30A - Flat Rocker

Features:

  • Provides over current and leakage protection per ABYC E-11 for whole boat shore power protection
  • Meets UL 1500 external ignition protection requirements
  • Trips on short circuit, overload, or leakage to ground
  • Front panel mount—installed in a power distribution panel

Specifications:

  • Amperage: 30A
  • Actuator Style: Flat Rocker
  • Poles: 2
  • Ignition Protected: Yes
  • Max Voltage: 240VAC/120VAC per pole
  • Circuit Breaker Type: Magnetic Hydraulic - trip free
  • Interrupt Capacity: 5000A
  • Minimum Operating Temperature: -35 degrees C
  • Max Operating Temperature: 65 degrees C
  • Leakage Trip Amps: 30mA

Restrictions

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
