Shop BLUE SEA SYSTEMS

Open Fuse Block, CC UL Class, 110 to 200A Amp Range, 160V DC Volt Rating

  • Mfr # 5007100

  • Zoro # G703532942

product price:  $75.45
/ea

Key Features

UL Class
CC
Voltage Rating
160V DC
Connector Type
Screw
Mounting Style
Bolt-Down
Fuse Block Design
Covered
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5007100
Zoro #
G703532942
UPC #
632085500719
Country of Origin
United States

Dimensions

Width
2 in
Length
7 in
Height
2.30 in

Details

Item
Open Fuse Block
UL Class
CC
Amp Range
110 to 200A
Voltage Rating
160V DC
Connector Type
Screw
Mounting Style
Bolt-Down
Fuse Block Design
Covered
DC Voltage Rating
160V DC

Description

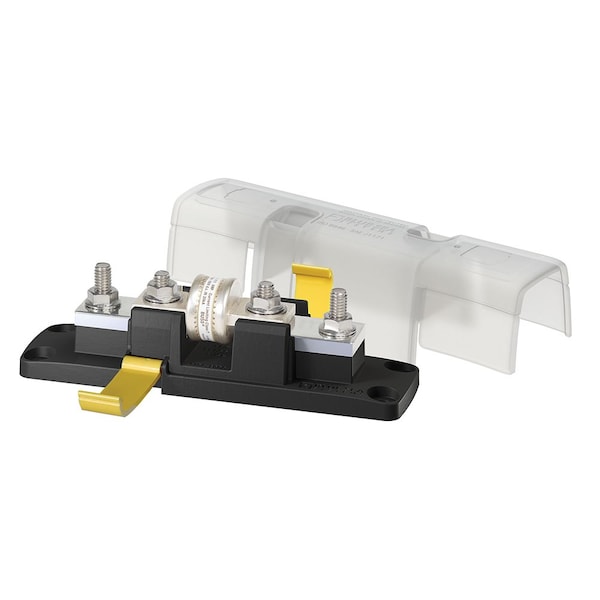

Class T Fuse Block with Insulating Cover - 110 to 200A
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics
  • Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
  • Insulating cover satisfies ABYC/USCG insulation requirements
  • Cover breakouts allow wire access in any direction
  • Stud design ensures secure fuse mounting even with high heat
  • Stainless steel studs provide resistance to corrosion and high torque
  • One-piece stainless flange nuts ensure safe and secure connections
  • UL 94-V0 base resists high heat

Specifications:
  • Cable Size: Up to 4/0 AWG
  • Ignition Protected: Yes
  • Maximum Amperage: 200A
  • Maximum Voltage: 160V DC
  • Fuse Mounting Block: Tin-Plated Copper
  • Terminal Stud Size: 5/16"-18 (M8)

Restrictions

WARNING: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause cancer, and Di(2-ethylhexyl)phthalate (DEHP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
