Open Fuse Block, 225 to 400A Amp Range, 160V DC Volt Rating, Screw
- Mfr # 5502100
- Zoro # G903532940
product price:Â
$
96.15
/ea
Key Features
UL Class
CC
Voltage Rating
160V DC
Connector Type
Screw
Mounting Style
Bolt-Down
Fuse Block Design
Covered
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5502100
- Zoro #
- G903532940
- UPC #
- 632085550219
- Country of Origin
- United States
Dimensions
- Length
- 7 in
- Width
- 2 in
- Height
- 2.30 in
- Mounting Hole Dia.
- 1/4 in
Details
- Item
- Open Fuse Block
- UL Class
- CC
- Amp Range
- 225 to 400A
- Voltage Rating
- 160V DC
- Connector Type
- Screw
- Mounting Style
- Bolt-Down
- Fuse Block Design
- Covered
- Wire Range
- 4/0 AWG
- DC Voltage Rating
- 160V DC
Description

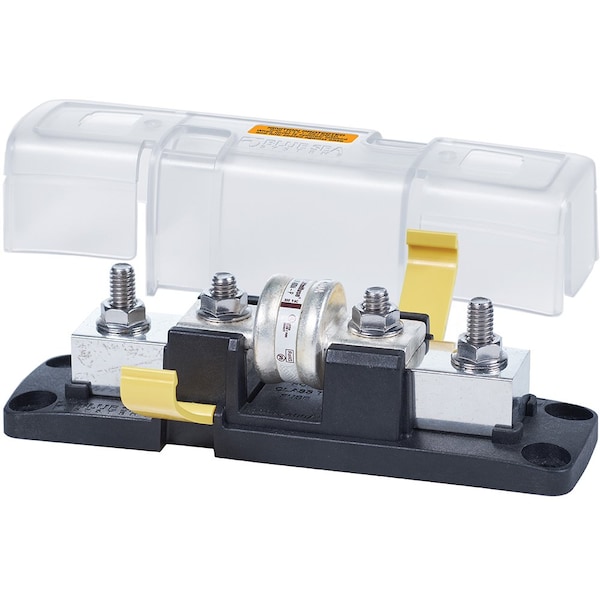

Class T Fuse Block with Insulating Cover - 225 to 400A
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics
Specifications:
Allows the use of Class T fuses for fast acting circuit protection of inverters and other electronics
- Four stud design provides ample access around connecting stud to install large cable lugs without obstruction from the fuse
- Insulating cover satisfies ABYC/USCG insulation requirements
- Cover breakouts allow wire access in any direction
- Stud design ensures secure fuse mounting even with high heat
- Stainless steel studs provide resistance to corrosion and high torque
- One-piece stainless flange nuts ensure safe and secure connections
- UL 94-V0 base resists high heat
Specifications:
- Cable Size: Up to 4/0 AWG
- Ignition Protected: Yes
- Maximum Amperage: 400A
- Maximum Voltage: 160V DC
- Fuse Mounting Blocks: Tin-Plated Copper
- Terminal Stud Size: 3/8"-16 (M10)
