Shop BLUE SEA SYSTEMS

Open Fuse Block, ST Series, 25 to 80A Amp Range, 32V DC Volt Rating

  • Mfr # 5056100

  • Zoro # G005729507

product price:
$
45.29
/ea

Key Features

UL Class
CC
Series
ST
Amp Range
25 to 80A
Voltage Rating
32V DC
Connector Type
Bus Bar
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5056100
Zoro #
G005729507
UPC #
632085505615
Country of Origin
Mexico

Dimensions

Length
5.41 in
Width
3.39 in
Height
1.99 in
Mounting Hole Dia.
1/4 in

Details

Item
Open Fuse Block
UL Class
CC
Series
ST
Amp Range
25 to 80A
Voltage Rating
32V DC
Connector Type
Bus Bar
Fuse Block Design
Covered
Wire Range
8 AWG to 4 AWG, 16 AWG to 10 AWG
DC Voltage Rating
32V DC

Description

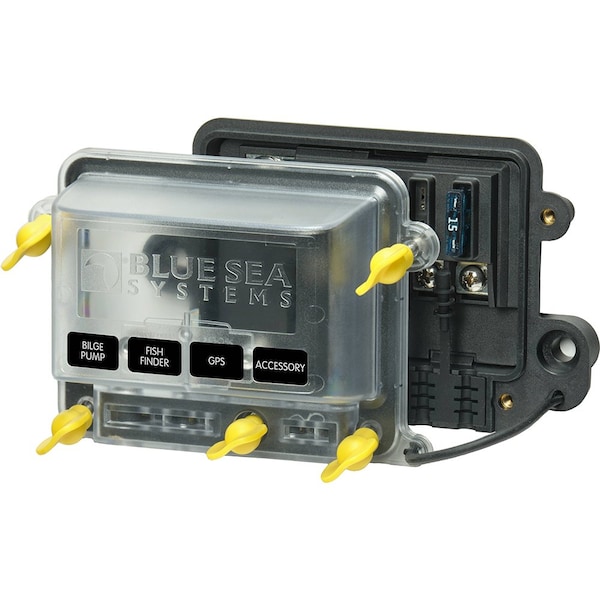

5056100 - Water Resistant ST-Blade Fuse Block with Cover

This Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint. Now with wing screws for toolless access.

Features:

  • Water-resistant design with a standard ring or spade-type terminals
  • Allows for simple wiring with standard tools
  • Accepts a wide range of wire sizes
  • Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required
  • Accepts ATO and ATC fast acting blade fuses
  • Accepts ATO/ATC-Style Low Profile Circuit Breakers
  • Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire
  • 5056100 meets ABYC/USCG insulation requirements
  • Tin-plated copper busses and fuse clips
  • Includes four write-on circuit labels
  • Spare fuse and fastener storage in cover
  • Wing screws designed for tool-free installation of cover to meet ABYC compliance

Technical Specifications:

  • Cover - yes
    • Maximum Voltage - 32V DC
    • Bus Material - Tin-plated Copper
    • Mounting Holes - Accepts 1/4" (6mm) screws
    • Terminal Screws - 4 x # 8-32 with captive star lock washer
    • Wire Size - Input - (1) 8 AWG to 4 AWG
    • Wire Size - Load - (4) 16 AWG to 10 AWG

In the Box:

  • 5056100 Busbar
  • Instruction Manual

*Sold as an Individual
