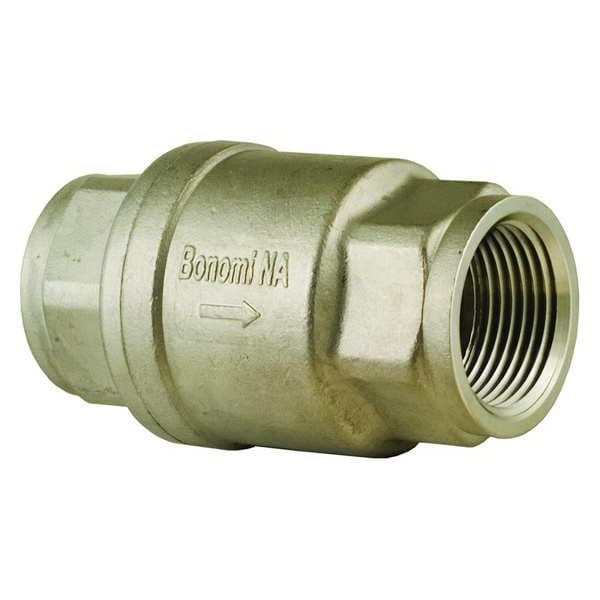

2" NPT Stainless Steel Spring Check Valve

  • Mfr # S800-2"
  • Zoro # G3769188
product price:
$
266.99
/ea
Free Shipping & Returns

Key Features

Pipe Size
2"
Connection Type
FNPT x FNPT
Body Material
316 Stainless Steel
Cracking Pressure - Check Valves
0.500 psi
Item - Check Valves
Check Valve
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S800-2"
Zoro #
G3769188
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Pipe Size
2"
Length
6"
Size
2"
Overall Height
3-9/16"
Pipe or Tube Size - Check Valves
2 in
Width
3.56"
Overall Length
6 in
Pipe or Tube Size
2 in
Nominal Valve Size
2 in
Connection Size - Side 2
2 in
Connection Size - Side 1
2 in
Wire Rope Length
6 in

Details

Connection Type
FNPT x FNPT
Body Material
316 Stainless Steel
Cracking Pressure - Check Valves
0.500 psi
Item - Check Valves
Check Valve
Full Flow - Valves
Yes
Connection Type - Check Valves
FNPT x FNPT
Min. Temp. - Valves
0 Degrees F
Max. Water Pressure
800 psi
Sub-Category
Stainless Steel
Max. Pressure
800 psi WOG
Mounting Orientation - Check Valves
Horizontal, Vertical
Application - Valves
General Purpose
Max. Steam Pressure
125 psi WSP
Mechanism and Body Design
Inline Spring
Flow
50 gpm
Material of Construction
CF8M 316 Stainless Steel
Max. Temp. - Valves
352 Degrees F
Max. Temp.
450 Degrees F
Seat Material
PTFE
Spring Material
316 Stainless Steel
Mounting Position
Any
Cracking Pressure
0.5 psi
Item
Check Valve
Spring Material - Check Valves
Stainless Steel
Flow Design
Single
Seat Material - Check Valves
PTFE
Body Material - Valves
316 Stainless Steel
Max. Steam Pressure - Valves
125 psi WSP
Max. Water Pressure - Valves
800 psi
Seal Material - Check Valves
PTFE
Seal Material
PTFE
Flow - Valves
50.00 gpm
Standards
ANSI B1.20.1
Mounting Orientation
Horizontal, Vertical
Check Mechanism Material
316 Stainless Steel
Operating Temperature - Maximum
400 Degrees F
Maximum Pressure - Operating
800 psi
Maximum Pressure - Steam
125 psi
Connection Type - Side 1
NPT
Connection Gender - Side 2
Female
Connection Type - Side 2
NPT
For Media
Gas, Oil, Steam, Water
3-A Standard Compliance
Not Rated
Vacuum Service Rating
Not Rated
Silent Check
Standard
Includes Counterweight
No Counterweight
Coefficient of Volume (Cv)
52
Valve Body Style
Inline
Connection Gender - Side 1
Female
Operating Temperature - Minimum
-4 Degrees F
Valve Ways
2-Way
Check Mechanism
Swing
Valve Series
S800

Description

The BONOMI S800-2 is a 2 in inline spring check valve with FNPT x FNPT connections for one-way flow control in compatible piping systems. Rated for use with gas, oil, steam, and water within listed pressure and temperature ratings, it includes a spring check mechanism for one-way flow control. The valve features a CF8M 316 stainless steel body, 316 stainless steel internal components, and PTFE seat and seal materials. It can be mounted horizontally or vertically and has a 0.5 psi cracking pressure.

Key Features:

  • Valve type: Inline spring check valve with spring check mechanism
  • Size and connections: 2 in female NPT on both ends; FNPT x FNPT connection
  • Body material: CF8M 316 stainless steel
  • Internal materials: 316 stainless steel check mechanism and 316 stainless steel spring
  • Seat and seal material: PTFE
  • Flow rating: 50 gpm with Cv of 52
  • Pressure ratings: 800 psi WOG maximum pressure and 125 psi WSP maximum steam pressure
  • Temperature range: -4 to 400 degrees F operating temperature
  • Mounting: Horizontal or vertical
  • Flow design: Single; full-flow configuration listed by supplier
  • Standards: ANSI B1.20.1
  • Dimensions: 6 in overall length; 3-9/16 in overall height; 3.56 in width
