Shop BONOMI

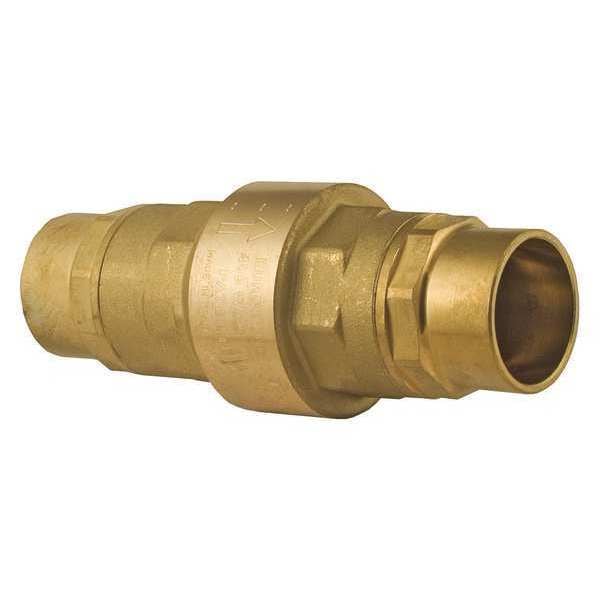

3/4" Sweat Brass Spring Check Valve

  • Mfr # 100712LF-3/4"

  • Zoro # G2011357

product price:
$
41.35
/ea

Key Features

Pipe Size
3/4"
Connection Type
Solder
Body Material
Lead Free Brass
Material of Construction
Brass
Max. Water Pressure - Valves
200 psi
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
100712LF-3/4"
Zoro #
G2011357
UPC #
-
Country of Origin
Italy

Dimensions

Pipe Size
3/4"
Overall Height
1-21/32"
Size
3/4"
Pipe or Tube Size - Check Valves
3/4"
Length
4.17"
Width
1.65"
Overall Length
4.17 in
Pipe or Tube Size
3/4 in
Connection Size - Side 1
3/4 in
Connection Size - Side 2
3/4 in
Height - Cap to Inlet Center
3/4 in
Nominal Valve Size
3/4 in
Wire Rope Length
4.17 in

Details

Connection Type
Solder
Body Material
Lead Free Brass
Material of Construction
Brass
Max. Water Pressure - Valves
200 psi
Item - Check Valves
Check Valve
Max. Pressure
400 psi WOG
Application - Valves
General Purpose
Cracking Pressure
0.5 psi
Mechanism and Body Design
Inline Spring
Max. Steam Pressure - Valves
Not Rated
Body Material - Valves
Brass
Flow Design
Single
Spring Material - Check Valves
Stainless Steel
Max. Temp. - Valves
210 Degrees F
Sub-Category
Check Valve
Item
Valve
Mounting Orientation - Check Valves
Horizontal, Vertical
Cracking Pressure - Check Valves
0.500 psi
Flow - Valves
16.30 gpm
Full Flow - Valves
Yes
Standards
ANSI B16.18, NSF 372, UL Listed
Seat Material - Check Valves
NBR
Connection Type - Check Valves
Sweat x Sweat
Min. Temp. - Valves
10 Degrees F
Seal Material
Buna-N
Spring Material
302 Stainless Steel
Seat Material
Buna-N
Flow
16.3 gpm
Mounting Orientation
Horizontal, Vertical
Seal
Viton
Check Mechanism
Swing
Valve Body Style
Inline
Maximum Pressure - Operating
400 psi
Connection Type - Side 2
Sweat
Connection Gender - Side 2
Female
For Media
Gas, Oil, Water
Connection Gender - Side 1
Female
Maximum Pressure - Steam
Not Rated
Operating Temperature - Maximum
210 Degrees F
Coefficient of Volume (Cv)
14.1
Includes Counterweight
No Counterweight
Silent Check
Standard
Operating Temperature - Minimum
-4 Degrees F
Check Mechanism Material
PPS
NSF Certifications for Food and Drinking Water
NSF 61
Vacuum Service Rating
Not Rated
Valve Ways
2-Way
3-A Standard Compliance
Not Rated
Connection Type - Side 1
Sweat
Valve Series
100712 LF

Description

BONOMI 100712LF-3/4 is a 3/4 in. inline spring check valve with sweat x sweat connections and a lead-free brass body. It is intended for compatible gas, oil, and water line applications requiring one-way flow and reverse-flow reduction. The valve features a swing check mechanism, a full-flow design, and a 0.5 psi cracking pressure.

Key Features:

  • Nominal size: 3/4 in.
  • Connection type: Sweat x sweat; female connections on both sides
  • Body material: Lead-free brass
  • Valve type: Inline spring check valve with swing check mechanism
  • Flow capacity: 16.3 gpm; Cv: 14.1
  • Pressure ratings: 400 psi WOG maximum pressure; 200 psi maximum water pressure
  • Operating temperature range: -4 F to 210 F
  • Seat material: Buna-N / NBR; seal materials: Buna-N and Viton
  • Spring material: 302 stainless steel; check mechanism material: PPS
  • Mounting orientation: Horizontal or vertical
  • Standards and listings: NSF 61, ANSI B16.18, NSF 372, UL Listed
  • Dimensions: 4.17 in. overall length, 1-21/32 in. overall height, 1.65 in. width
