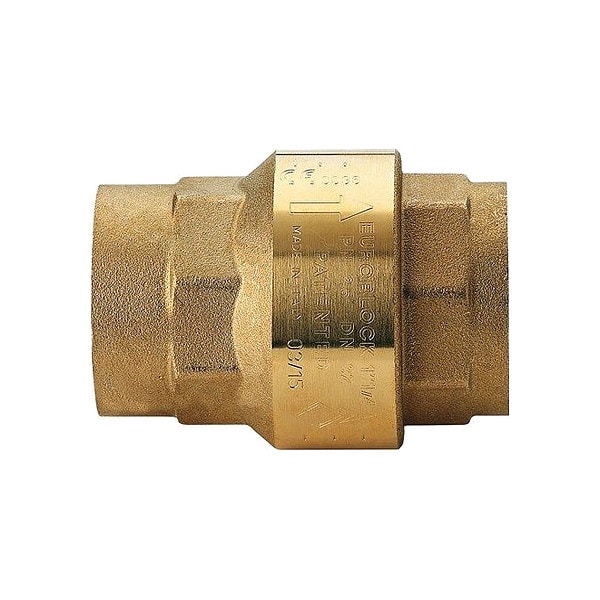

3/8" NPT Brass Spring Check Valve

  • Mfr # 100003-3/8"

  • Zoro # G2425066

product price:
$
14.59
/ea

Key Features

Pipe Size
3/8"
Hex Size
13/16 in
Connection Type
FNPT x FNPT
Body Material
Brass
Mechanism and Body Design
Inline Spring
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
100003-3/8"
Zoro #
G2425066
UPC #
-
Country of Origin
Italy
Connection Type
FNPT x FNPT
Body Material
Brass
Mechanism and Body Design
Inline Spring
Max. Temp. - Valves
352 Degrees F
Item
VALVE
Spring Material - Check Valves
Stainless Steel
Body Material - Valves
Brass
Flow - Valves
4.28 gpm
Seat Material - Check Valves
Viton
Max. Steam Pressure - Valves
125 psi WSP
Sub-Category
Check Valve
Material of Construction
Brass
Full Flow - Valves
Yes
Min. Temp. - Valves
0 Degrees F
Cracking Pressure - Check Valves
0.500 psi
Item - Check Valves
Check Valve
Max. Water Pressure - Valves
400 psi
Mounting Orientation - Check Valves
Horizontal, Vertical
Application - Valves
General Purpose
Flow Design
Single
Max. Pressure
125 psi
Connection Type - Check Valves
FNPT x FNPT
Cracking Pressure
0.5 psi
Seal Material
FKM
Flow
4.28 gpm
Seat Material
FKM
Standards
ANSI B1.20.1
Spring Material
302 Stainless Steel
Mounting Orientation
Horizontal, Vertical
Seal
Viton
Valve Body Style
Inline
Vacuum Service Rating
Not Rated
Coefficient of Volume (Cv)
2.1
Connection Gender - Side 2
Female
For Media
Gas, Oil, Steam, Water
Operating Temperature - Maximum
366 Degrees F
Maximum Pressure - Steam
125 psi
Check Mechanism
Swing
3-A Standard Compliance
Not Rated
Includes Counterweight
No Counterweight
Connection Type - Side 1
NPT
Valve Ways
2-Way
Silent Check
Standard
Operating Temperature - Minimum
-4 Degrees F
Connection Type - Side 2
NPT
Check Mechanism Material
PPS
Maximum Pressure - Operating
400 psi
Connection Gender - Side 1
Female
Valve Series
100003

Description

BONOMI 100003-3/8 is a 3/8 in inline spring check valve with female NPT connections on both ends. The brass body and single-flow design provide automatic one-way flow control in general-purpose systems handling gas, oil, steam, or water, and are intended to reduce reverse flow. It can be mounted horizontally or vertically and features a 0.5 psi cracking pressure, flow rate of 4.28 gpm, and Cv of 2.1.

Key Features:

  • 3/8 in nominal valve size with FNPT x FNPT connections
  • Brass body construction
  • Inline spring mechanism with spring check mechanism and inline body style
  • For use with gas, oil, steam, and water
  • Cracking pressure: 0.5 psi
  • Flow rate: 4.28 gpm; Cv: 2.1
  • Maximum operating pressure: 400 psi; maximum steam pressure: 125 psi WSP
  • Operating temperature range: -4 degrees F to 366 degrees F
  • Seal and seat materials: FKM/Viton
  • Spring material: 302 stainless steel; check mechanism material: PPS
  • Overall length: 1.73 in; overall height: 1-1/16 in; width: 1.06 in
  • Standards: ANSI B1.20.1
