Shop BONOMI

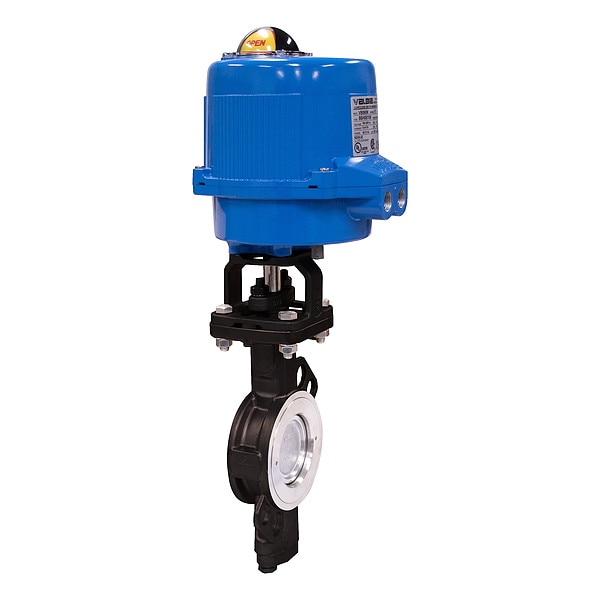

Electrically Actuated Butterfly Valve

  • Mfr # ME8100-002-12
  • Zoro # G312477979
product price:
$
4,343.99
/ea
Additional $140.00 delivery surcharge applies per item.
See details

Key Features

Body Material
Carbon Steel
Voltage
24V AC, 24V DC
Disc Material
Stainless Steel
Liner Material
RPTFE
Standards
ANSI 150, CSA/UL, ISO 5211
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ME8100-002-12
Zoro #
G312477979
UPC #
-
Country of Origin
Multiple

Dimensions

Nominal Valve Size
12 in

Details

Item
Electrically Actuated Butterfly Valve
Body Material
Carbon Steel
Voltage
24V AC, 24V DC
Disc Material
Stainless Steel
Liner Material
RPTFE
Standards
ANSI 150, CSA/UL, ISO 5211
Seal Material
FKM
Operating Temperature - Maximum
475 Degrees F
For Media
Gas, Oil, Water
Maximum Pressure - Operating
285 psi
Stem Material
17-4PH Stainless Steel
Actuator Ambient Temperature - Minimum
-4 Degrees F
Actuator Electrical Entry
1/2 in Conduit
Fail Safe Position
Fail Closed
Connection Type
Wafer
Vacuum Service Rating
Not Rated
3-A Standard Compliance
Not Rated
NEMA Enclosure Rating
4
Maximum Pressure - Steam
150 psi
IP Rating
IP67
Actuator Enclosure Material
Aluminum
Operating Temperature - Minimum
-20 Degrees F
Actuator Input Control Signal
Manual
ANSI Flange Class
Class 150
Actuator Duty Cycle
75 %
Valve Deactivated State
Normally Closed (NC)
Actuator Features
Heater, Auxiliary Limit Switch, Torque Limiter
Actuator Ambient Temperature - Maximum
131 Degrees F
Disc Alignment
Double-Offset
Valve Series
ME8100

Description

Electrically Actuated Butterfly Valve, Body Material Carbon Steel, Voltage 24V AC/DC, Standards ANSI 150, CSA/UL, ISO 5211

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
