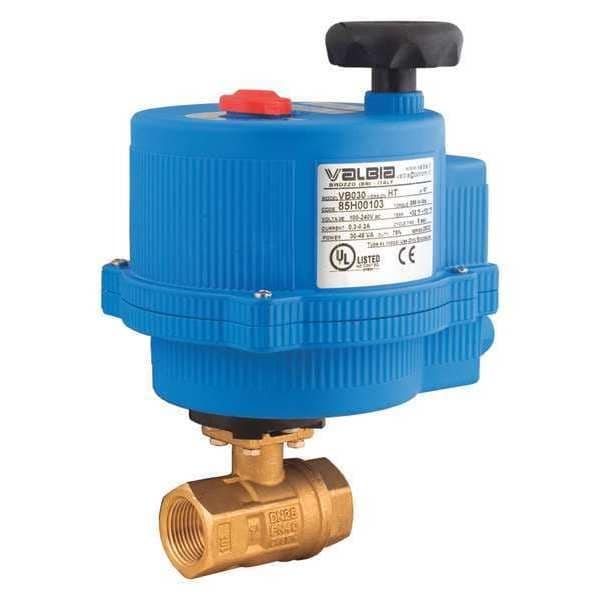

Electrically Actuated Two-Way Ball Valve

  • Mfr # 8E064LF-001-1
  • Zoro # G7514836
product price:
$
403.99
/ea
Free Shipping & Returns

Key Features

Ball Material
Brass
Body Style
2-Way
Valve Structure
Full Port
Connection Type
FPT x FPT
Temp. Range
-4 Degree F to 366 Degree F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
8E064LF-001-1
Zoro #
G7514836
UPC #
-
Country of Origin
Italy
Ball Material
Brass
Body Style
2-Way
Valve Structure
Full Port
Connection Type
FPT x FPT
Item
Electric Brass,Ball Valve,12VDC,1"
Temp. Range
-4 Degree F to 366 Degree F
Max. Pressure
600 PSI WOG
Ball Valve Product Group
Actuated
Stem Material
Brass
Handle Type
Actuator
Body Material
Brass
Standards
ANSI B1.20.1, NSF 372, TSSA, UL
Actuator Features
Manual Override
Valve Ways
2-Way
Maximum Operating Pressure Differential
600 psi
Actuator Series
VB
NEMA Enclosure Rating
4
Actuator Enclosure Material
Technopolymer
Connection Type - Side 1
NPT
Seal Material
EPDM, FKM
Actuator Duty Cycle
50 %
Connection Type - Side 2
NPT
Connection Gender - Side 1
Female
Actuator Motor Type
Unidirectional
Seat Material
PTFE
Operating Temperature - Maximum
366 Degrees F
Actuator Ambient Temperature - Minimum
-4 Degrees F
Manufacturer Warranty
1 yr
NSF Certifications for Food and Drinking Water
NSF 61
Maximum Pressure - Steam
150 psi
Connection Gender - Side 2
Female
Special Features
Actuator Compatible
Fail Safe Position
Fail Last
Actuator Operation
90 Degrees
Valve Construction
Two-Piece
Included Mounting
ISO 5211 Actuator Mounting Pad
Actuator Maximum Torque
133 in-lb
Ball Port Style
Full Port
Actuator Cycle Time - 90 Degrees
10 sec
Actuator Ambient Temperature - Maximum
131 Degrees F
Maximum Pressure - Operating
600 psi
Valve Body Style
Straight
IP Rating
IP65
Operating Temperature - Minimum
-4 Degrees F
Voltage
12V AC/DC
Coefficient of Volume (Cv)
49.71
For Media
Combustible Gases, Natural Gas, Steam, Water
Stem Type
Blowout Resistant
Maximum Current
0.3 A

Dimensions

Pipe Size
1 in
Connection Size - Side 1
1 in
Length
3.23 in
Nominal Valve Size
1 in
Overall Length
3.23 in

Description

Electrically Actuated Two-Way Ball Valve, Ball Material Brass, Nominal Valve Size 1 in, Maximum Pressure - Operating 600 psi, Actuator Operation 90 Degrees , Valve Body Style Straight, Seat Material PTFE, Seal Material EPDM, FKM, Voltage 12V AC/DC, Fail Safe Position Fail Last, IP Rating IP65, Actuator Cycle Time - 90 Degrees 10 sec, Valve Construction Two-Piece, Actuator Features Manual Override, Connection Gender - Side 1 Female, Connection Type - Side 1 NPT, Connection Gender - Side 2 Female

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
