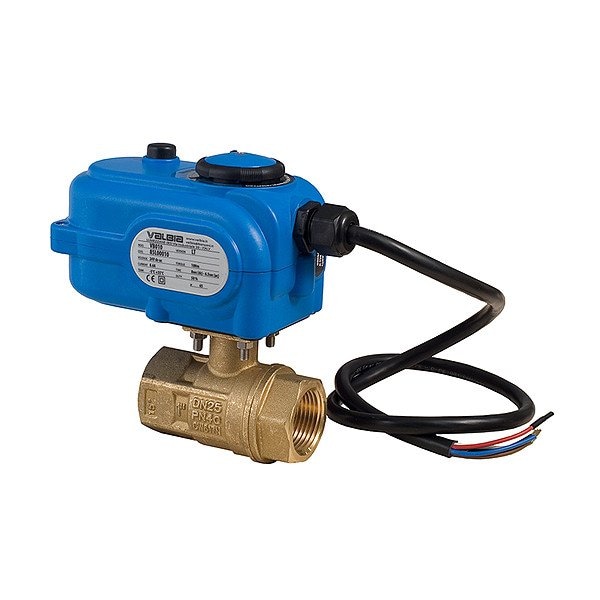

Electrically Actuated Two-Way Ball Valve

  • Mfr # 8E864LF-002-3/8

  • Zoro # G916127638

product price:
$
325.99
/ea
Free Shipping & Returns

Key Features

Special Features
Actuator Compatible
Actuator Motor Type
Unidirectional
Actuator Enclosure Material
Technopolymer
Valve Series
250N LF
Actuator Ambient Temperature - Maximum
131 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
8E864LF-002-3/8
Zoro #
G916127638
UPC #
-
Country of Origin
Italy
Item
Electrically Actuated Two-Way Ball Valve
Special Features
Actuator Compatible
Actuator Motor Type
Unidirectional
Actuator Enclosure Material
Technopolymer
Valve Series
250N LF
Actuator Ambient Temperature - Maximum
131 Degrees F
Actuator Cycle Time - 90 Degrees
8 sec
Valve Body Style
Straight
Connection Gender - Side 1
Female
Connection Type - Side 2
NPT
Stem Type
Blowout Resistant
Valve Ways
2-Way
Valve Construction
Two-Piece
Operating Temperature - Maximum
366 Degrees F
Stem Material
Brass
Fail Safe Position
Fail Last
Actuator Features
Manual Override
Seat Material
PTFE
Coefficient of Volume (Cv)
3.94
Actuator Operation
90 Degrees
Maximum Current
0.41 A
Ball Port Style
Full Port
Seal Material
EPDM, FKM
Actuator Duty Cycle
75 %
Ball Material
Brass
Included Mounting
ISO 5211 Actuator Mounting Pad
Maximum Pressure - Steam
150 psi
Body Material
Brass
NSF Certifications for Food and Drinking Water
NSF 61
Operating Temperature - Minimum
-4 Degrees F
Connection Type - Side 1
NPT
Standards
ANSI B1.20.1, NSF 372, TSSA, UL
Manufacturer Warranty
1 yr
Actuator Maximum Torque
89 in-lb
For Media
Combustible Gases, Natural Gas, Steam, Water
Actuator Series
VB
IP Rating
IP65
Actuator Ambient Temperature - Minimum
23 Degrees F
NEMA Enclosure Rating
4
Maximum Operating Pressure Differential
600 psi
Connection Gender - Side 2
Female
Voltage
24V AC/DC
Maximum Pressure - Operating
600 psi

Description

Electrically Actuated Two-Way Ball Valve, Ball Material Brass, Nominal Valve Size 3/8 in, Maximum Pressure - Operating 600 psi, Actuator Operation 90 Degrees , Valve Body Style Straight, Seat Material PTFE, Seal Material EPDM, FKM, Voltage 24V AC/DC, Fail Safe Position Fail Last, IP Rating IP65, Actuator Cycle Time - 90 Degrees 8 sec, Valve Construction Two-Piece, Actuator Features Manual Override, Connection Gender - Side 1 Female, Connection Type - Side 1 NPT, Connection Gender - Side 2 Female
