  9. 240VAC, Both Electric Tankless Water Heater, Undersink, 135 Degrees F, 12000 W, Single Phase

This item is Discontinued.

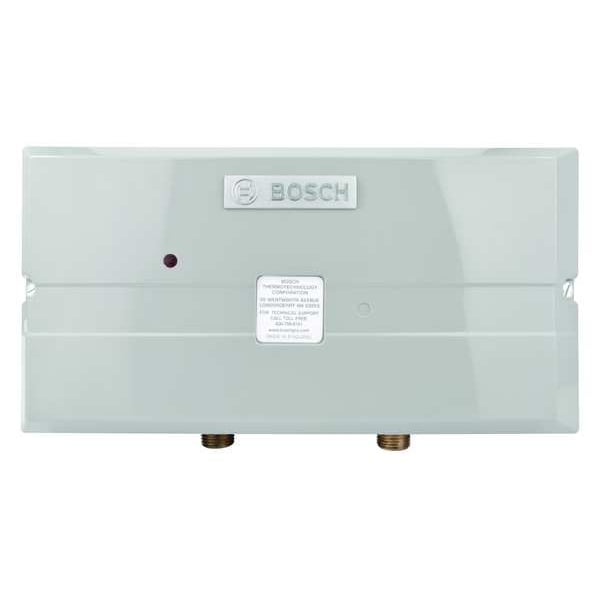

Bosch 240VAC, Both Electric Tankless Water Heater, Undersink, 135 Degrees F, 12000 W, Single Phase US12

240VAC, Both Electric Tankless Water Heater, Undersink, 135 Degrees F, 12000 W, Single Phase (Discontinued)

  • Mfr # US12
  • Zoro # G0311491
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
US12
Zoro #
G0311491
UPC #
052575112855
Country of Origin
Ireland

Dimensions

Width
12-3/4"
Wire Size
6 AWG
Height
6-1/2"
Depth
3"
Overall Depth
12.75 in
Overall Height
3 in
Overall Width
6.5 in
Manufacturer Warranty Length
5 yr Heating Element and 1 yr Other Parts
Overall Dimensions - H x W x D
3 in x 6.5 in x 12.75 in
Cold Inlet Size
1/2 in
Hot Outlet Size
1/2 in

Details

Item
Electric Tankless Water Heater
Item - Water Heaters
Electric Tankless Water Heater
Water Heater Design
Point-of-Use
Water Heater Application
Undersink
Commercial / Residential
Both
Watts - Water Heaters
12,000
Amps - Water Heaters
50
Voltage - Water Heaters
240
Min. Flow Activation
0.60 gpm
Temp. Range - Water Heaters
135 Degrees F
Mounting
Any Direction
Features
Compact, Point-of-Use Tankless Water Heater, Easy Installation, 99% Efficient with Zero Stand-By Loss, No Temperature/Pressure Relief Valve Needed, Tough Plastic Housing, Endless Hot Water, 5 Year Warranty
Pressure Range
10 to 150 psi
Water Connection
1/2" NPT
Temp. Rise @ 2.5 GPM - Water Heaters
33 Degrees F
Temp. Rise @ 1.5 GPM
55 Degrees F
Amps AC
50
Residential / Commercial
Both
Temp. Range
135 Degrees F
Watts
12000
Standards
UL Listed
Voltage
240VAC
Temp. Rise @ 0.5 GPM
159 Degrees F
Temp. Rise @ 20.0 GPM
50A
Temp. Rise @ 2.5 GPM
33 Degrees F
Default Temperature
122 Degrees F
Temp. Rise @ 4.0 GPM
20 Degrees F
Elements
Solid Copper Heat Exchanger and Copper Sheathed Heating Element
Phase
Single
NEMA Rating
Not Rated
Application
Sinks
Housing Material
Plastic
Operating Voltage
240V AC
Control Type
Dial
Cold Inlet Type
NPT
Power Consumption
12,000 W
Element Material
Copper
Adjustable Thermostat
Yes
Minimum Water Pressure
10 psi
Maximum Water Pressure
150 psi
Maximum Delivered Temperature
135 Degrees F
Hot Outlet Connection Gender
Male
Hot Outlet Type
NPT
Minimum Delivered Temperature
65 Degrees F
Market
Commercial, Residential
Thermal Efficiency
99 %
Included Valves
Shutoff
Temperature Range
65 Degrees F to 135 Degrees F
Environment
Indoor
Mounting Type
Wall Mounting
Cold Inlet Gender
Male
Maximum Flow Rate
2.3 gpm
Current
50 A
Cord Conductor Gauge
6 AWG Wire
Temperature Rise @ Flow
35 Degrees F @ 2.3 gpm, 45 Degrees F @ 1.8 gpm, 55 Degrees F @ 1.5 gpm, 65 Degrees F @ 1.3 gpm, 75 Degrees F @ 1.1 gpm, 90 Degrees F @ 0.9 gpm
Minimum Flow Activation
0.6 gpm
Mounting Orientation
Horizontal, Vertical

Description

Electric Tankless Water Heater, Operating Voltage 240V AC, Phase Single, Cold Inlet Size 1/2 in, Maximum Flow Rate 2.3 gpm, Minimum Flow Activation 0.6 gpm, Overall Height 3 in, Overall Width 6.5 in, Overall Depth 12.75 in, Power Consumption 12,000 W, Maximum Delivered Temperature 135 Degrees F, Minimum Delivered Temperature 65 Degrees F, Adjustable Thermostat Yes, Current 50 A, Environment Indoor, Market Commercial, Residential, Application Sinks, Cold Inlet Gender Male, Cold Inlet Type NPT
