This item is Discontinued.

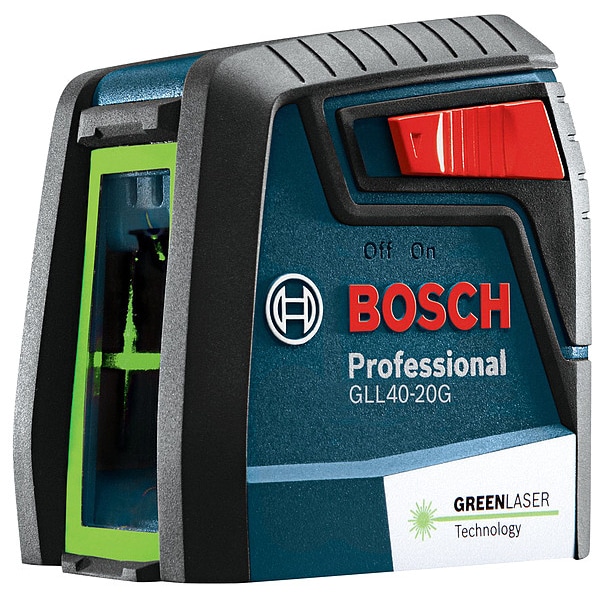

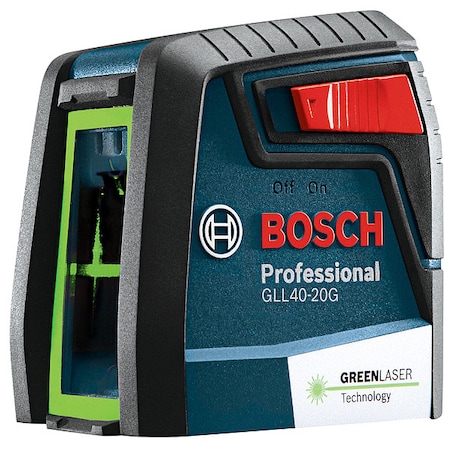

Bosch Cross Line Laser, 1/4-20 Thread Size GLL40-20G

Cross Line Laser, 1/4-20 Thread Size (Discontinued)

  • Mfr # GLL40-20G
  • Zoro # G3945792
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
GLL40-20G
Zoro #
G3945792
UPC #
000346634792
Country of Origin
China

Dimensions

Width
2 5/16 in
Height
3 13/64 in
Length
3 13/64 in
Thread Size
1/4"-20
Overall Width
2 5/16 in
Tripod Thread Size
1/4"-20
Overall Depth
3 3/16 in
Overall Height
3 3/16 in

Details

Item
Cross Line Laser
Laser Usage Environment
Interior
Laser Projection
Horizontal, Vertical
Leveling Type
Electronic Self-Leveling
Number of Beams
2
Number of Dots
0
Number of Lines
2
Laser Color
Green
Range w/o Detector
30 ft
Number of Plumb Vials
0
Plumb Up
Yes
Includes
Case
Auto Shutoff
Yes
Auto Leveling Range
+/-5 Degrees
Battery Type
AA
Preset Angle
None
Plumb Down
Yes
Material
Plastic
Laser Class
Class 2
Visual/Audible Indicators
Yes
Number of Scanning Modes
0
IP Rating
IP40
Range w/Detector
50 ft
Power Source
(2) AA Batteries
Features
Bright Green-Beam Laser Lines - upto 2x Brighter than Standard Red Beams, Compact 40 ft Cross-Line Laser Design, Cross-Line Mode, Ergonomic, Compact and Lightweight, Mm 2 Flexible Mounting Device, Secure Transport, Smart Pendulum System, Visimax(TM) Technology
Number of 45 Degree Vials
0
Number of Level Vials
0
Total Number of Vials
0
Accuracy
+/-5/16 in @ 30 ft
Indoor Range - Maximum
40 ft
Number of 45 Vials
0
Self-Leveling Range
+/-4 Degrees
Preset Angles
90 Degrees
Operating Temperature - Minimum
41 Degrees F
Working Range with Detector - Maximum
50 ft
Laser Output
Less Than5 mW
Includes Batteries
Batteries Included
Operating Temperature - Maximum
104 Degrees F
Working Range without Detector - Maximum
30 ft
Weight
0.5 lb
Number of Planes
0
Mount Type
Tripod
Outdoor Range - Maximum
40 ft
Laser Beam Color
Green
Use Location
Indoor
Automatic Shutoff
Yes

Description

If you're looking for a way to improve your accuracy, the Bosch GLL40-20G Cross Line Laser is just what you need. It can be used in both indoor and outdoor settings. The cross line laser has an ergonomic design that makes it easy to handle. It features a smart pendulum system that provides +/-5/16 in. of accuracy at 30 ft.. This green rotary laser level has a total height of 3 13/64 in., length of 3 13/64 in., width of 2 5/16 in., and length of 3 13/64 in.. Powered by AA batteries, this rotary laser level has a projection range of horizontal and vertical. If you want increased accuracy with your line lasers, the Bosch GLL40-20G Cross Line Laser is definitely what you need.
