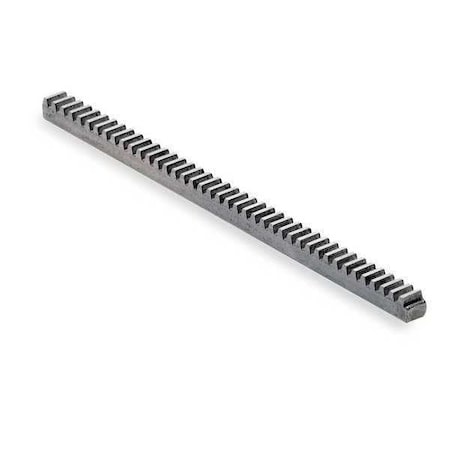

Rack, Steel, 10 Pitch

Zoro #: G1173225
Mfr #: L516-6

Hover or click to zoom Tap to zoom

Key Features

Pitch: 10
Nominal Length (Ft.): 6
Face Width (In.): 1.0 in
Teeth per Inch: 3.18
Pitch Line to Back (In.): 0.525 in
Overall Thickness (In.): 0.625 in
For Use With: 1L973-1L981
Item: Gear Rack

See full product details

$184.91

Quantity

For 10% Off Your First Order

30-Day Returns

125 U.S.-Based Customer Service Agents

Boston Gear #L516-6 Specifications

Zoro #: G1173225
Mfr #: L516-6
UPC #: 781711373262

Pitch: 10
Nominal Length (Ft.): 6
Face Width (In.): 1.0 in
Teeth per Inch: 3.18
Pitch Line to Back (In.): 0.525 in
Overall Thickness (In.): 0.625 in
For Use With: 1L973-1L981
Item: Gear Rack
Material: Steel
Pressure Angle (Deg.): 14.5
(nominal length builder): 6 ft - BOSTON GEAR
Diametral Pitch: 10
Face Width: 1 in
System of Measurement: Inch
(hidden) end builder: L516-6
(hidden) Gear Rack Type: Inch 1 in Face Wd x 5/8 in Overall HtL516-6
Pressure Angle: 14.5 Degrees
Compatible Spur Gear Grainger Part Number: 1L973-1L981
Machined Ends: Non-Machined Ends
Nominal Overall Length: 6 ft
Gear Material & Finish: Steel
Pitch Height: 0.53 in
Overall Length: 6 ft
Cross-Section Dimensions: 1 in Face Wd x 5/8 in Overall Ht
Overall Height: 5/8 in
Country of Origin (subject to change): China

Description

Gear Rack, Compatible Spur Gear Grainger Part Number 1L973-1L981, Diametral Pitch 10, Face Width 1 in, Material Steel, Overall Height 5/8 in, Overall Length 6 ft, Pitch Height 0.53 in

Restrictions and Compliance

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
