  11. Cordset, 3 Pin, Receptacle, Female

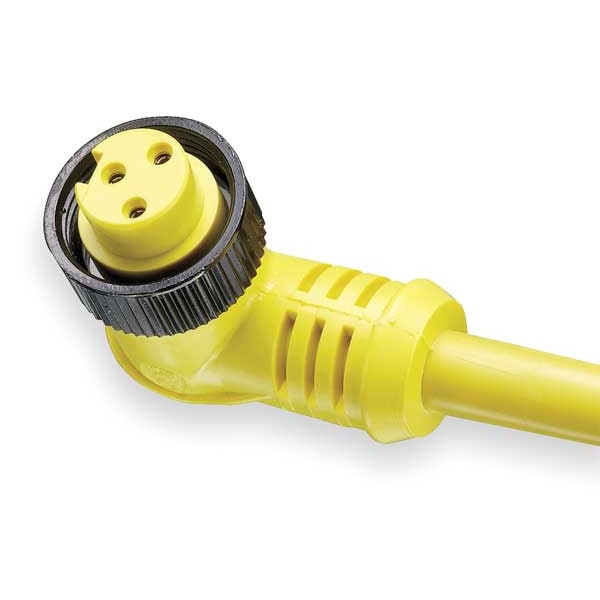

Brad Harrison Cordset, 3 Pin, Receptacle, Female 103001A01F120 - main

Cordset, 3 Pin, Receptacle, Female

  • Mfr # 103001A01F120

  • Zoro # G2333265

product price: $49.49
/ea

Key Features

End 1 Number of Pins
3
Cable Length
12 ft
Wire Size
16 AWG
IP Rating
IP67
Temp. Range
-4 Degrees to 221 Degrees F
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
103001A01F120
Zoro #
G2333265
UPC #
-
Country of Origin
Mexico

Dimensions

Cable Length
12 ft
Wire Size
16 AWG
Cable Diameter
10.41mm (.410")

Details

Item
Cordset
End 1 Number of Pins
3
IP Rating
IP67
Temp. Range
-4 Degrees to 221 Degrees F
NEMA Rating
6P
Max. Voltage
600VAC/VDC
End 1 Thread
7/8"-16
End 1 Connection Type
7/8 in
Number of Conductors
3
End 1 Keyway
Single
Max. Amps
13 A
Standards
CSA Certified, IEC, UL Listed
Features
Low Resistance Contact Design with Gold over Palladium Nickel Plating; Single End; Single Keyway
End 2 Gender and Plug End
Bare Wire
End 2 Connection Type
Bare Wire
End 1 Gender and Plug End
Female Right Angle
Keyway
Single
Color
Yellow
End 1 Number of Keyways
1
End 1 Gender
Female
Minimum Operating Temperature
-4 Degrees F
Number of Wires
3
Maximum Operating Temperature
221 Degrees F
Cable Jacket Color
Yellow
End 1 Mounting Orientation
Right Angle
Cable Jacket Material
PVC
Voltage
600V AC
Orientation
90° to Pigtail
Coupling Style
Threaded
Temperature Range - Operating
-20°C to +105°C
Assembly Type
Single End Cordset
Material - Plating Mating
Gold
Wire/Cable Type
STOOW
UL
E152210
CSA
LR6837
Current - Maximum per Contact
13.0A
Gender
Female-Pigtail
Poles
3
Voltage - Maximum
600V
LED Indicator
No
Angle
90 Degree
Material - Connector Body
PVC
Material - Coupling Nut
Black Epoxy Coated Zinc
Connector Material
PVC Body, Black Epoxy Coated Zinc Nut
Product Type
Single Ended

Description

Cordset, End 1 Gender Female, End 1 Thread 7/8 In.-16, End 1 Number of Pins 3, End 1 Mounting Orientation Right Angle, End 1 Connection Type 7/8 in, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 12 ft, Cable Jacket Color Yellow, Cable Jacket Material PVC, Max. Amps 13 A, Wire Size 16 AWG, Maximum Operating Temperature 221 Degrees F, Minimum Operating Temperature -4 Degrees F, IP Rating IP67, IP68, Standards CSA Certified, IEC, UL Listed
