Brad Harrison

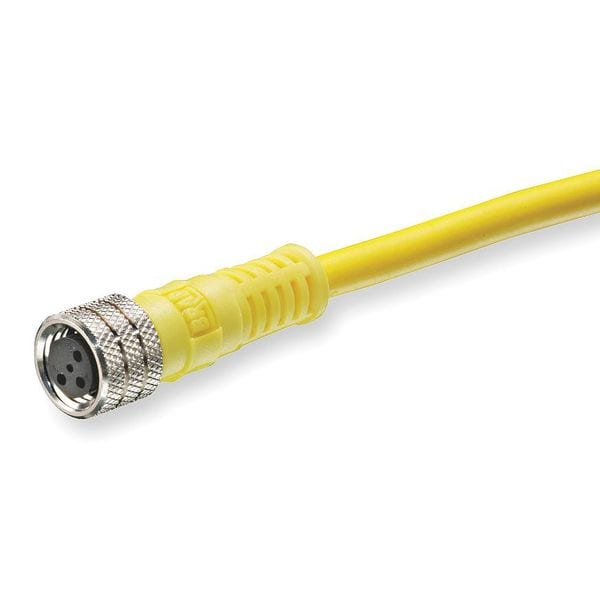

Cordset, 3 Pin, Receptacle, Female

original price: $25.53
8% off
new price: $23.45
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Cable Length 5 m
  • Jacket Color Yellow
  • End 1 Number of Pins 3
  • End 1 Thread M8
  • Wire Size 24 AWG
See all product information

Product Information

Dimensions

Cable Length 5 m
Wire Size 24 AWG

Details

Item Cordset
Jacket Color Yellow
End 1 Number of Pins 3
End 1 Thread M8
End 1 Connection Type M8
End 2 Connection Type Bare Wire
Jacket Material PVC
Features Threaded Coupling to Withstand Harsh Industrial Environments
Temp. Range -4 Degrees to 221 Degrees F
IP Rating IP67, IP68
End 1 Gender and Plug End Female Straight
Number of Conductors 3
NEMA Rating 6P
Max. Amps 4 A
End 2 Gender and Plug End Bare Wire
Standards CSA Certified, IEC, UL Listed
Cordset Type Single-Ended
Cordset Configuration M8 Female Straight X Bare Wire
Cable Jacket Color Yellow
End 1 Gender Female
Maximum Operating Temperature 221 Degrees F
End 1 Mounting Orientation Straight
Cable Jacket Material PVC
Minimum Operating Temperature -4 Degrees F
Number of Wires 3
Connector Type M8

Description

Cordset, End 1 Gender Female, End 1 Thread M8, End 1 Number of Pins 3, End 1 Mounting Orientation Straight, End 1 Connection Type M8, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 5 m, Cable Jacket Color Yellow, Cable Jacket Material PVC, Max. Amps 4 A, Wire Size 24 AWG, Maximum Operating Temperature 221 Degrees F, Minimum Operating Temperature -4 Degrees F, IP Rating IP67, IP68, Standards CSA Certified, IEC, UL Listed, NEMA Rating 6P
