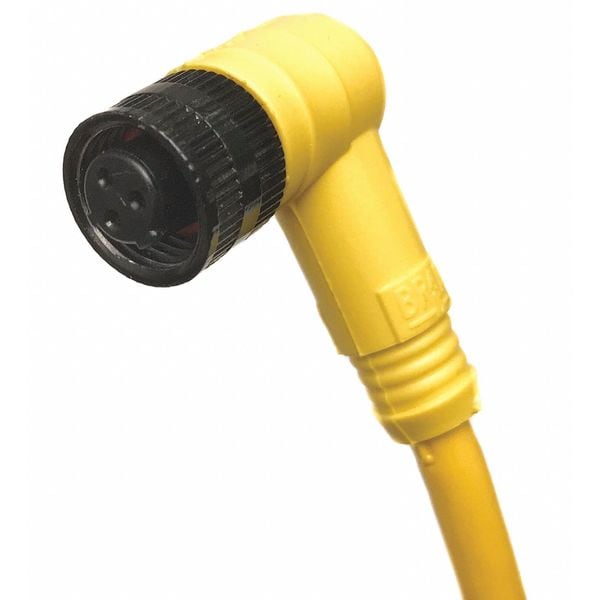

Cordset, 3 Pin, Receptacle, Female

Mfr # 703001D02F060
Zoro # G1769756

$39.95

Free Shipping on orders over $50

Free 30-Day Returns

Key Features

Cable Length 6 ft
Jacket Color Yellow
End 1 Number of Pins 3
Max. Voltage 250 V AC, 250 V DC
End 1 Thread 1/2"-20

See all product information

Brand Brad Harrison
MFR # 703001D02F060
Zoro # G1769756
Country of Origin Mexico
Category Sensor Cordsets & Receptacles

Dimensions

Cable Length	6 ft
Wire Size	22 AWG

Details

Item	Cordset
Jacket Color	Yellow
End 1 Number of Pins	3
Max. Voltage	250 V AC, 250 V DC
End 1 Thread	1/2"-20
End 1 Connection Type	1/2 in
End 2 Connection Type	Bare Wire
Jacket Material	PVC
End 2 Gender and Plug End	Bare Wire
Max. Amps	4 A
Temp. Range	-4 Degrees to 221 Degrees F
End 1 Gender and Plug End	Female Right Angle
For Use With	AC Powered Sensors
Number of Conductors	3
IP Rating	IP67, IP68
End 1 Keyway	Dual
Standards	CSA Certified, IEC, UL Listed
NEMA Rating	6P
End 1 Number of Keyways	2
Connector Type	1/2 in
Number of Wires	3
Cable Jacket Material	PVC
Maximum Operating Temperature	221 Degrees F
Minimum Operating Temperature	-4 Degrees F
Temperature Range	-4 Degrees F to 221 Degrees F
Cordset Type	Single-Ended
End 1 Gender	Female
End 1 Mounting Orientation	Right Angle
Cordset Configuration	1/2"-20 Female Right Angle x Bare Wire
Cable Jacket Color	Yellow

Description

Cordset, End 1 Gender Female, End 1 Thread 1/2 In.-20, End 1 Number of Pins 3, End 1 Mounting Orientation Right Angle, End 1 Connection Type 1/2 in, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 6 ft, Cable Jacket Color Yellow, Cable Jacket Material PVC, Max. Amps 4 A, Wire Size 22 AWG, Maximum Operating Temperature 221 Degrees F, Minimum Operating Temperature -4 Degrees F, IP Rating IP67, IP68, Standards CSA Certified, IEC, UL Listed
