Shop HONEYWELL

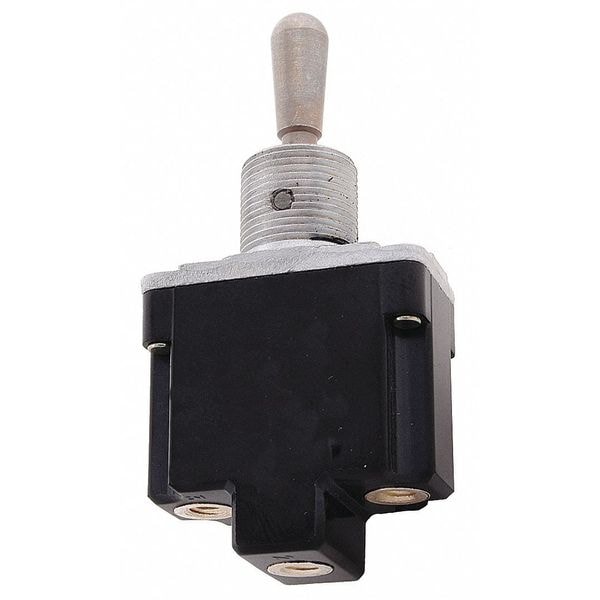

Toggle Switch - SPST, Momentary ON/OFF, 10A 125V AC, IP67/IP68 Rated

  • Mfr # 1NT1-6

  • Zoro # G4731851

product price:  $35.19
/ea

Key Features

Switch Function
Momentary On/Maintained Off
Contact Form
SPST
HP
1/2 hp
Actuator Style
Standard Lever
Amps
10A @ 125VAC, 10A @ 250VAC, 10A @ 28VDC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
1NT1-6
Zoro #
G4731851
UPC #
-
Country of Origin
United States

Dimensions

Stem Length
0.47 in
Actuator Length
0.67 in
Stem Dia. and Thread Size
0.470 in
Stem Diameter
0.47 in
Mounting Hole Diameter
0.47 in
Stem Thread Size
15/32-32 UNS-2A
Overall Height
2.3 in
Overall Width
0.62 in
Overall Depth
1.12 in

Details

Switch Function
Momentary On/Maintained Off
Contact Form
SPST
HP
1/2 hp
Actuator Style
Standard Lever
Amps
10A @ 125VAC, 10A @ 250VAC, 10A @ 28VDC
Number of Connections
2
Terminals
Screw
Recommended Use
Aerial and Scissor Lifts, Agriculture and Material-Handling Equipment, Cranes and Construction, Factory-Floor Control Units, Machine Tool Equipment Manufacturers, Truck Mounted Tele-Handlers
Operating Temp. Range
-85 Degrees to 160 Degrees F
DC Contact Rating
15 A @ 28 V
Mounting Hole
0.50 in dia
Stem Color
Silver
Item
Toggle Switch
AC Contact Rating
10 A @ 125 V, 10 A @ 250 V
Special Features
Step Base
Actuator Color
Silver
Standards
CE, CSA, UL Listed
Includes
Bushing, Case, Cover, Toggle Lever
IP Rating
IP67, IP68
Product Type
Toggle Switch
Series
NT
Actuator Material
Metal
Resistance Properties
Dust Resistant, Shock Resistant, Watertight, Temperature Resistant, Vibration Resistant
Switch Function Configuration
Momentary On/Off
NEMA Enclosure Rating
13, 3, 3R, 4
Operating Temperature - Minimum
-40 Degrees F
Number of Positions
2
Base Type
Step
Horsepower
1/4 hp @ 125V AC, 250 hp @ 250V AC
Operating Temperature - Maximum
160 Degrees F
Terminal Connection Type
Screw Terminals
Metal Actuator Finish
Silver
Number of Poles
1
Operator Illumination Style
Non-Illuminated

Description

Honeywell NT Series Toggle Switch is a single-pole, single-throw (SPST) switch suitable for applications within the specified environmental ratings. It features a standard metal lever actuator with a silver finish and includes a bushing, case, cover, and toggle lever. The switch offers momentary ON/maintained OFF functionality and is rated IP67/IP68 and NEMA types 13, 3, 3R, and 4 per manufacturer specifications; see datasheet for details.

Key Features:

  • Contact Ratings: 10A @ 125V AC / 250V AC; 15A @ 28V DC
  • Actuator: Standard metal lever; silver color; length 0.67 in
  • Mounting: Step base type; mounting hole diameter 0.47 in
  • Protection Ratings: IP67/IP68; NEMA types 13, 3, 3R, and 4
  • Operating Temperature Range: -85°F to +160°F (-40°C to +71°C)
  • Terminals: Screw connection type with two connections
  • Dimensions: Overall height 2.3 in; width 0.62 in; depth 1.12 in
  • Certifications: CE marked, CSA certified, UL listed
