This item is Discontinued.

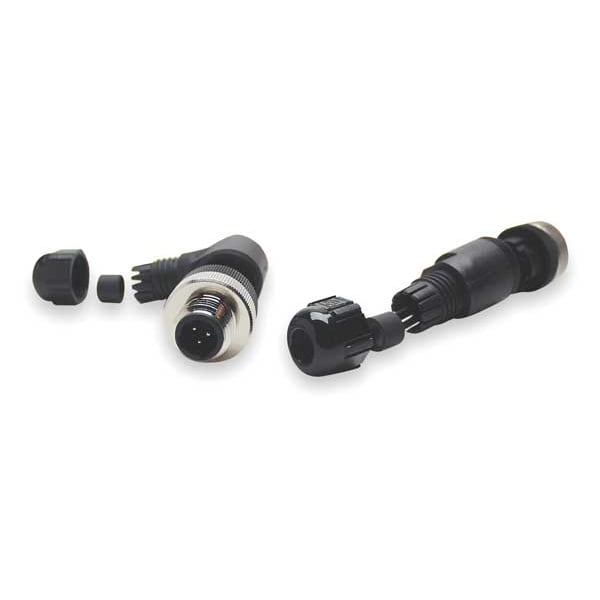

Brad Harrison Cordset, 3 Pin, Receptacle, Male 7R3A06A19A120

Cordset, 3 Pin, Receptacle, Male (Discontinued)

  • Mfr # 7R3A06A19A120
  • Zoro # G1474067
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
7R3A06A19A120
Zoro #
G1474067
UPC #
-
Country of Origin
Mexico

Dimensions

Cable Length
4.10mm to 8.10mm
Wire Size
22 AWG

Details

Item
Field Attachment Connector
Jacket Material
PVC
End 1 Number of Pins
3
Jacket Color
Black
IP Rating
IP68
Max. Amps
4A
NEMA Rating
6P
Max. Voltage
250VAC/DC
End 1 Gender and Plug End
Male Straight
For Use With
Control Panels; Junction Boxes; Sensors
Number of Conductors
3
End 1 Connection Type
1/4 in
End 1 Keyway
Dual
End 1 Thread
1/4"-18
Standards
CSA Certified, UL Listed
End 2 Connection Type
Bare Wire
Features
Quick-Disconnect Design; Dual Keyway
Temp. Range
-40 Degrees to 185 Degrees F
Number of Pins
3
Color
Green, Red/Black, Red/White
End 1 Number of Keyways
2
Connector Type
1/4"
End 1 Mounting Orientation
Straight
Cable Jacket Color
Black
End 1 Gender
Male
Cable Jacket Material
PVC
Number of Wires
3
Cordset Type
Single-Ended
Cordset Configuration
1/4"-18 Male Straight x Bare Wire

Description

Cordset, End 1 Gender Male, End 1 Thread 1/4 In.-18, End 1 Number of Pins 3, End 1 Mounting Orientation Straight, End 1 Connection Type 1/4 in, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 1 ft, Cable Jacket Color Black, Cable Jacket Material PVC, Max. Amps 4 A, Wire Size 22 AWG, IP Rating IP67, Standards CSA Certified, UL Listed, NEMA Rating 6P, End 1 Number of Keyways 2
