  11. Cordset, 4 Pin, Receptacle, Female

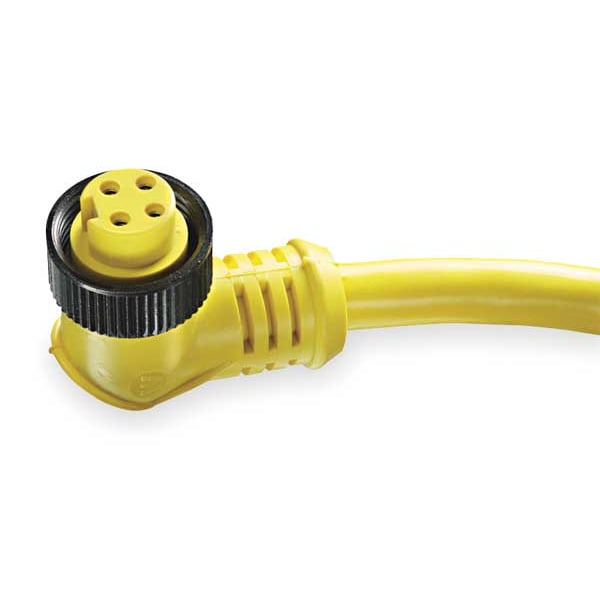

Brad Harrison Cordset, 4 Pin, Receptacle, Female 104001A01F120 - main

Cordset, 4 Pin, Receptacle, Female

  • Mfr # 104001A01F120

  • Zoro # G1080186

product price: $61.16
/ea

Key Features

End 1 Number of Pins
4
Cable Length
12 ft
Wire Size
16 AWG
IP Rating
IP67, IP68
End 1 Keyway
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
104001A01F120
Zoro #
G1080186
UPC #
-
Country of Origin
Mexico

Dimensions

Cable Length
12 ft
Wire Size
16 AWG
Cable Diameter
10.67mm (.420")

Details

Item
Cordset
End 1 Number of Pins
4
IP Rating
IP67, IP68
End 1 Keyway
Single
Number of Conductors
4
Features
Low Resistance Contact Design with Gold over Palladium Nickel Plating; Single End; Single Keyway
Max. Voltage
600VAC/VDC
End 2 Connection Type
Bare Wire
Standards
CSA Certified, IEC, UL Listed
End 1 Thread
7/8"-16
End 2 Gender and Plug End
Bare Wire
NEMA Rating
6P
Max. Amps
10 A
End 1 Connection Type
7/8 in
Temp. Range
-4 Degrees to 221 Degrees F
End 1 Gender and Plug End
Female Right Angle
Keyway
Single
End 1 Number of Keyways
1
Maximum Operating Temperature
221 Degrees F
Number of Wires
4
Cable Jacket Material
PVC
End 1 Mounting Orientation
Right Angle
Cable Jacket Color
Yellow
End 1 Gender
Female
Minimum Operating Temperature
-4 Degrees F
Current - Maximum per Contact
10.0A
Temperature Range - Operating
-20°C to +105°C
Orientation
90° to Pigtail
Coupling Style
Threaded
Material - Connector Body
PVC
CSA
LR6837
Poles
4
Voltage - Maximum
600V
UL
E152210
Material - Plating Mating
Gold
LED Indicator
No
Wire/Cable Type
STOOW
Gender
Female-Pigtail
Material - Coupling Nut
Black Epoxy Coated Zinc
Product Type
Single Ended

Description

Cordset, End 1 Gender Female, End 1 Thread 7/8 In.-16, End 1 Number of Pins 4, End 1 Mounting Orientation Right Angle, End 1 Connection Type 7/8 in, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 12 ft, Cable Jacket Color Yellow, Cable Jacket Material PVC, Max. Amps 10 A, Wire Size 16 AWG, Maximum Operating Temperature 221 Degrees F, Minimum Operating Temperature -4 Degrees F, IP Rating IP67, IP68, Standards CSA Certified, IEC, UL Listed
