Shop BRAD HARRISON

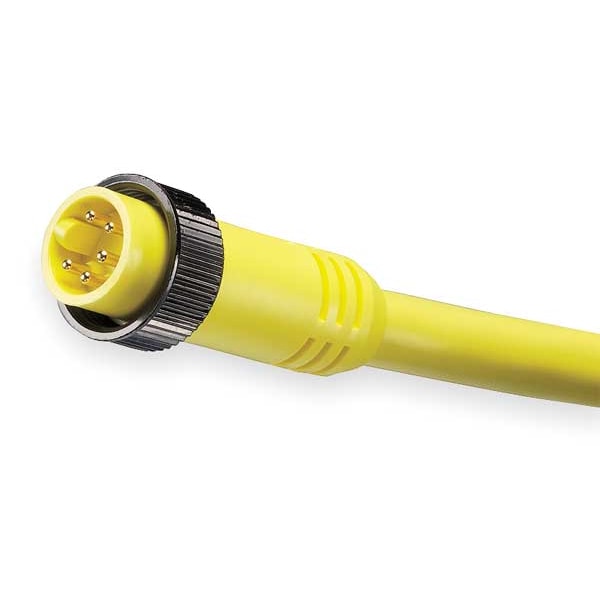

Cordset, 5 Pin, Plug, Male

  • Mfr # 105002A01F120

  • Zoro # G1132275

product price:
$
57.89
/ea

Key Features

Product Type
Single Ended
End 1 Number of Pins
5
Wire Size
16 AWG
Cable Length
12 ft
Cable Jacket Material
PVC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
105002A01F120
Zoro #
G1132275
UPC #
-
Country of Origin
Mexico
Item
Cordset
Product Type
Single Ended
End 1 Number of Pins
5
Cable Jacket Material
PVC
Cable Jacket Color
Yellow
IP Rating
IP68
Max. Amps
8 A
Maximum Operating Temperature
221 Degrees F
Max. Voltage
600 V DC, 600 V AC
Features
Low Resistance Contact Design with Gold over Palladium Nickel Plating
End 2 Gender and Plug End
Bare Wire
End 1 Gender and Plug End
Male Straight
Temp. Range
-4 Degrees to 221 Degrees F
Standards
CSA Certified, IEC, UL Listed
NEMA Rating
6P
Number of Conductors
5
End 1 Keyway
Single
End 2 Connection Type
Bare Wire
End 1 Connection Type
7/8 in
End 1 Thread
7/8"-16
Keyway
Single
Color
White, Red, Green, Orange, Black
End 1 Number of Keyways
1
Minimum Operating Temperature
-4 Degrees F
End 1 Gender
Male
End 1 Mounting Orientation
Straight
Number of Wires
5
Voltage
600V AC/DC
Material - Connector Body
PVC
UL
E152210
Material - Plating Mating
Gold
LED Indicator
No
Application/Rating - NEMA
NEMA 6P
Temperature Range - Operating
-20°C to +105°C
Gender
Male-Pigtail
Wire/Cable Type
STOOW
Poles
5
Current - Maximum per Contact
8.0A
Voltage - Maximum
600V
Coupling Style
Threaded
Orientation
Straight to Pigtail
Connector Material
PVC Body, Epoxy Coated Zinc Nut
Assembly Type
Single End Cordset
Material - Coupling Nut
Black Epoxy Coated Zinc
CSA
LR6837

Description

Cordset, End 1 Gender Male, End 1 Thread 7/8 In.-16, End 1 Number of Pins 5, End 1 Mounting Orientation Straight, End 1 Connection Type 7/8 in, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 12 ft, Cable Jacket Color Yellow, Cable Jacket Material PVC, Max. Amps 8 A, Wire Size 16 AWG, Maximum Operating Temperature 221 Degrees F, Minimum Operating Temperature -4 Degrees F, IP Rating IP67, IP68, Standards CSA Certified, IEC, UL Listed
