  11. External Thread Connector, 3, Male, 24 AWG

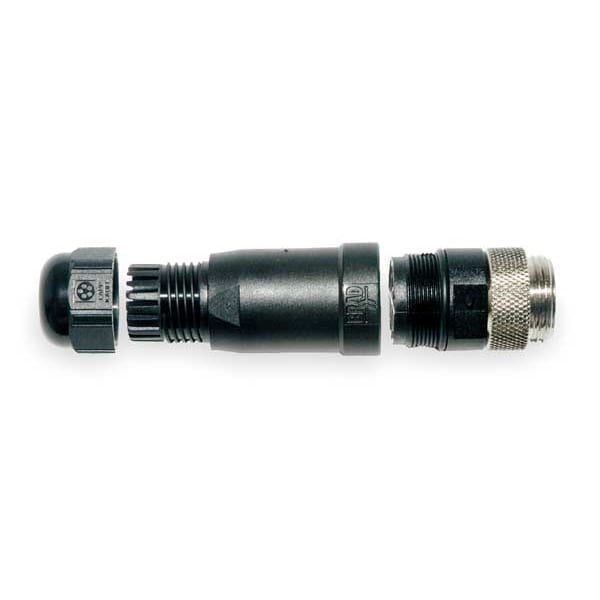

Brad Harrison External Thread Connector, 3, Male, 24 AWG 1A3006-34 - main

External Thread Connector, 3, Male, 24 AWG

  • Mfr # 1A3006-34

  • Zoro # G1126386

product price: $32.49
/ea

Key Features

Wire Size
24 AWG to 15 AWG
IP Rating
IP67, IP68
Threads
7/8-16
Body Material
Polyurethane
Face Dia.
1 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1A3006-34
Zoro #
G1126386
UPC #
-
Country of Origin
United States

Dimensions

Wire Size
24 AWG to 15 AWG
Face Dia.
1 in
Cable Diameter
5.08-11.43mm (.200-.450")
Wire Size AWG
15 to 24
Connector Mating Size
7/8-16 UN
Thread Size
7/8"-16
Cable Outside Diameter
0.45 in

Details

Item
Field Attachable Connector
IP Rating
IP67, IP68
Threads
7/8-16
Body Material
Polyurethane
Number of Pins
3
Max. Voltage
600VAC/DC
Standards
cCSAus, CE, China RoHS, CSA, EU RoHS, REACH SVHC
Plug End
Straight
Keyway
Single
Color
Black
NEMA Rating
6P
Plug or Connector Type
Male
Max. Current
13 A
Temp. Range
-40 Degrees to 176 Degrees F
Features
Single Keyway
Max. Amps
13A
Product Type
External Thread Connector
Housing Material
Nylon
Application
Power
Voltage - Maximum
600V AC/DC
Coupling Type
External Thread
Material - Plating Mating
Gold
Gender
Male
Orientation
Straight
CSA
LR6837
Poles
3
Current - Maximum per Contact
13.0A
Temperature Range - Operating
-20°C to +80°C
Material - Connector Body
Nylon
Material - Coupling Nut
Nickel-plated Brass
Connector Type
Male Ctr
Cable Range
5.08-11.4 mm (0.20-0.45 in.) OD
Material
Nylon Body, Nickel-plated Brass Nut
Application/Rating - IEC
IP 67
Includes Nut
Yes
Connection Color
Black
Minimum Operating Temperature
-4 Degrees F
Maximum Operating Temperature
176 Degrees F
Mounting Style
Straight Connector
Connection Type
Cable, Wire
Connector Body Type
Pin
Number of Poles
3
Nominal Current
13 A
NEMA Enclosure Rating
6P
Series
130017
Locking Style
Nut
Connector Orientation
Straight

Description

Connector, External Thread, Male, Plug End Straight, Number of Conductors 3, Number of Poles 3, Max Wire Size 24 AWG, Voltage 600 AC, Voltage 600 DC, Amps AC 13, 7/8-16 Threads, Face Dia 1 In, Single Keyway, Material Polyurethane, Black, NEMA Rating 6P, Standards UL, IEC
