Shop BRAD HARRISON

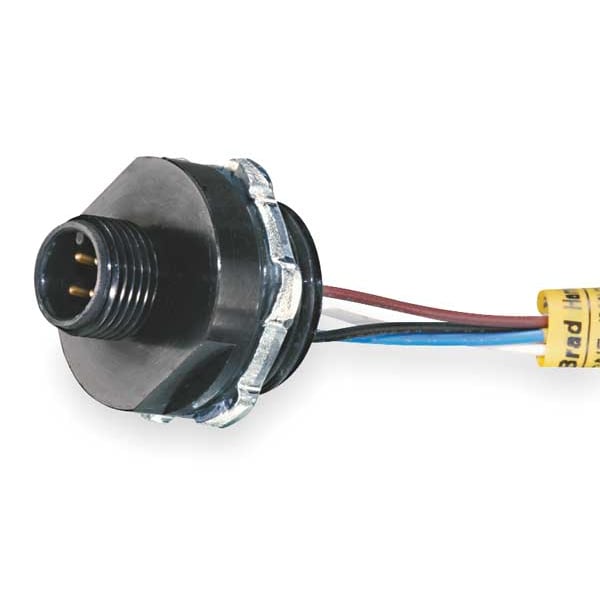

External Thread Receptacle, 4, Male, 22 AWG

  • Mfr # 8R4006A18A120

  • Zoro # G2389615

product price:
$
28.59
/ea

Key Features

Material
Black Anodized Aluminum
Cable Length
4.10mm to 8.10mm
Wire Size
18 AWG
For Use With
All Standard Single Keyway M12 Receptacles And Cordsets
IP Rating
IP68
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
8R4006A18A120
Zoro #
G2389615
UPC #
-
Country of Origin
Mexico

Dimensions

Cable Length
4.10mm to 8.10mm
Wire Size
18 AWG
Face Dia.
0.374 in
Wire Length
1 ft
Wire Size AWG
22
Length
0.305m
Mounting Thread Size
1/2"-14
Mounting Size
1/2-14 NPT Mount
Connector Mating Size
M12x1
Termination Size
22 AWG
Connection Diameter
1 in

Details

Item
Field Attachment Connector
Material
Black Anodized Aluminum
For Use With
All Standard Single Keyway M12 Receptacles And Cordsets
IP Rating
IP68
Color
Black
Plug or Connector Type
Male
Keyway
Single
Number of Pins
4
Plug End
Straight
Max. Voltage
250V AC/DC
Max. Current
4 A
Threads
M12
Body Material
Aluminum
NEMA Rating
6P
Standards
CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed
Max. Amps
4A
Temp. Range
-13 Degrees to 194 Degrees F
Features
Gold Over Nickel-Plated Contacts
Product Type
External Thread Receptacle
Type
Male, Micro Receptacle
Gender
Male
Voltage - Maximum
250V AC/DC
Panel Mount
Front
Coupling Type
External Thread
UL
E152210
Temperature Range - Operating
-20°C to +80°C
Wire/Cable Type
Leads, UL 1061
Orientation
Straight
Poles
4
Current - Maximum per Contact
4.0A
Material - Component
Black Annodized Aluminum
CSA
LR6837
Application/Rating - NEMA
NEMA 6P
Application/Rating - IEC
IP 67, IP68
Wire-Pin Colors
Black, White, Blue, Black
Termination Type
Wire Leads
Compatible Wire Gauge
22 AWG
Operating Temperature - Maximum
176 Degrees F
DC Voltage Rating - Maximum
250 V
Series
120070
Operating Temperature - Minimum
-4 Degrees F
Connection Color
Black
Current Rating - Maximum
4 A
Mounting Style
Panel
AC Voltage Rating - Maximum
250 V
NEMA Enclosure Rating
6
Number of Keyways
1
Mounting Thread Type
NPT

Description

External Thread Receptacle, Number of Pins 4, Plug or Connector Type Male, Straight Plug End, Max. Voltage 250V AC/DC, Max. Current 4 A, Wire Size 22 AWG, Threads M12, Face Dia. 0.374 in, Keyway Single, Body Material Aluminum, Color Black, NEMA Rating 6P, IP Rating IP67, Wire Length 1 ft, Standards CE, China RoHS, CSA, EU RoHS, REACH SVHC, UL Listed
