  11. External Thread Connector, 5, Male, 18 AWG

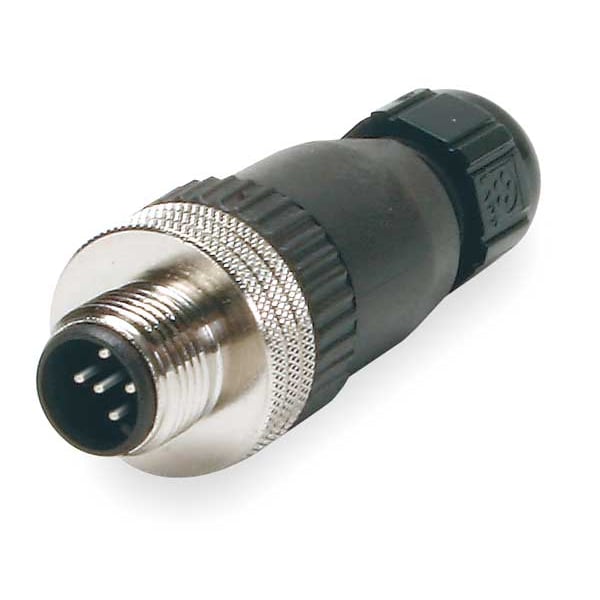

Brad Harrison External Thread Connector, 5, Male, 18 AWG 8A5006-31 - main

External Thread Connector, 5, Male, 18 AWG

  • Mfr # 8A5006-31

  • Zoro # G2378336

product price: $41.79
/ea

Key Features

Cable Length
3.30mm to 6.60mm
Wire Size
18 AWG
IP Rating
IP68
Number of Pins
5
Threads
M12
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
8A5006-31
Zoro #
G2378336
UPC #
-
Country of Origin
Poland

Dimensions

Cable Length
3.30mm to 6.60mm
Wire Size
18 AWG
Face Dia.
0.374 in
Cable Diameter
3.30-6.60mm (.130-.260")
Wire Size AWG
18
Cable Outside Diameter
0.26 in
Thread Size
M12

Details

Item
Field Attachment Connector
IP Rating
IP68
Number of Pins
5
Threads
M12
Color
Black
Max. Current
4 A
Standards
cCSAus, CE, China RoHS, CSA, EU RoHS, REACH SVHC
Plug End
Straight
NEMA Rating
6P
Keyway
Single
Body Material
Polyamide
Max. Voltage
30VAC/36VDC
Plug or Connector Type
Male
For Use With
All Standard Single Keyway M12 Receptacles And Cordsets
Max. Amps
4A
Features
Highly Reliable Low Resistance Contact Design with Gold over Nickel Plating; Single Keyway
Temp. Range
-13 Degrees to 194 Degrees F
Product Type
External Thread Connector
Application
Power
Housing Material
Polyamide
Orientation
Straight
Current - Maximum per Contact
4.0A
Temperature Range - Operating
-25°C to +90°C
Gender
Male
Coupling Type
External Thread
Voltage - Maximum
30V AC / 36V DC
Material - Connector Body
PA
CSA
LR6837
Poles
5
Material - Coupling Nut
Nickel-plated Brass
Material - Plating Mating
Silver
Includes Nut
Yes
Minimum Operating Temperature
-13 Degrees F
Number of Poles
5
Connector Body Type
Pin
Maximum Operating Temperature
194 Degrees F
Nominal Current
4 A
Compatible Wire Gauge - Maximum
18 AWG
Series
120071
Mounting Style
Straight Connector
Connection Color
Black
Cord Grip Included
PG7
Connection Type
Cable, Wire
Connector Orientation
Straight
Locking Style
Nut
NEMA Enclosure Rating
6P

Description

Connector, Quick Disconnect, Male, Plug End Straight, Number Of Conductors 5, Number Of Poles 5, Max Wire Size 18 AWG, Voltage 30 AC, Voltage 36 DC, Amps AC 4, M12 Threads, Face Dia 0.374 In, Single Keyway, Material Polyamide, Black, NEMA Rating 6P, Standards UL, IEC
