Brad Harrison

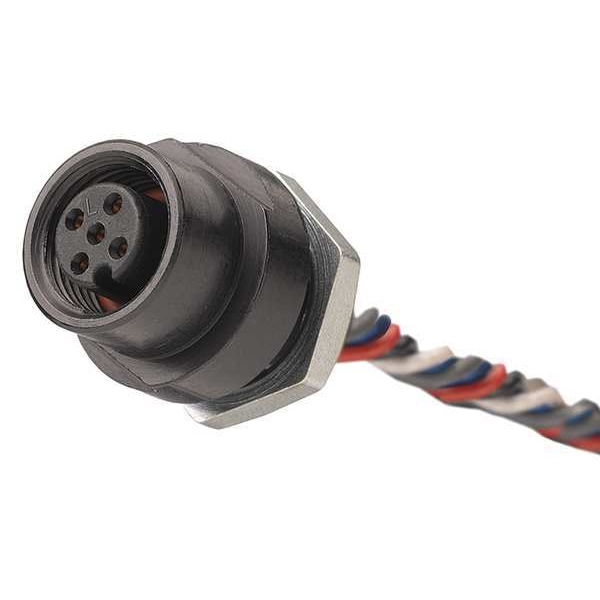

Internal Thread Receptacle, 5, Female, 4A

product price: $28.19
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Number of Pins 5
  • Cable Length 1 ft.
  • Plug or Connector Type Female
  • Plug End Straight
  • Max. Voltage 250VAC/VDC
See all product information

Product Information

Dimensions

Cable Length 1 ft.
Wire Size 22 AWG
Wire Length 1 ft
Face Dia. 0.57 in
Mounting Thread Size 1/4" - 18 NPT
Wire Size AWG 22
Length 0.305m
Mounting Size 1/4-14 NPT Mount
Connector Mating Size M12x1

Details

Item Internal Thread Receptacle
Number of Pins 5
Plug or Connector Type Female
Plug End Straight
Max. Voltage 250VAC/VDC
Max. Current 4 A
Threads M12
Color Brown, White, Blue, Black, Gray
Keyway Single
Body Material PVC
NEMA Rating 6P
Standards CSA certified
Max. Amps 4A
IP Rating IP67, IP68
For Use With Control Panels; Junction Boxes; Sensors
Temp. Range -4 Degrees to 176 Degrees F
Features Single Ended; Single Keyway
Type Female, Micro Receptacle
Voltage - Maximum 250V AC/DC
Panel Mount Front
Wire/Cable Type Leads, UL 1061
Coupling Type Internal Thread
CSA LR6837
Gender Female
Material - Component Black Annodized Aluminum
Orientation Straight
Temperature Range - Operating -20°C to +80°C
Current - Maximum per Contact 4.0A
Poles 5
UL E152210
Application/Rating - IEC IP 67, IP68
Termination Type Wire Leads
Application/Rating - NEMA NEMA 6P
Material Black Anodized Aluminum

Description

Internal Thread Receptacle, Number of Pins 5, Plug or Connector Type Female, Straight Plug End, Max. Voltage 250V AC/DC, Max. Current 4 A, Wire Size 18 AWG, Threads M12, Face Dia. 0.57 in, Keyway Single, Body Material PVC, Color Black, NEMA Rating 6P, Wire Length 1 ft, Standards CSA Certified
