Shop BRAD HARRISON

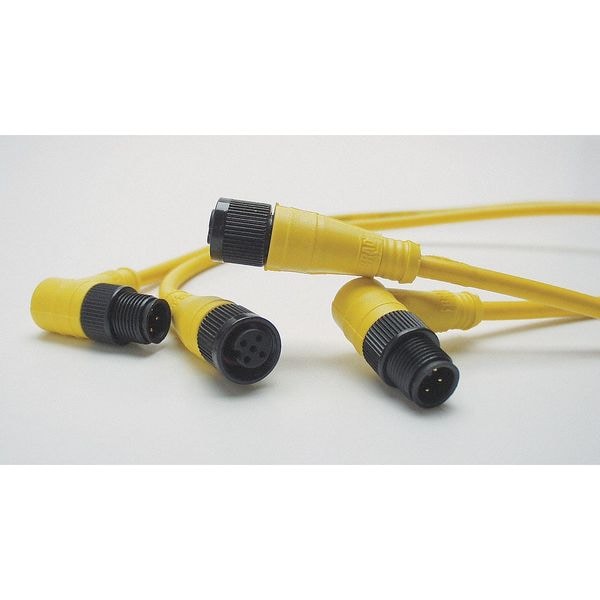

Cordset, 4 Pin, Plug, Male

  • Mfr # 804007A09M020

  • Zoro # G1607882

product price:
$
21.49
/ea

Key Features

Product Type
Single Ended
End 1 Number of Pins
4
Wire Size
22 AWG
Cable Length
2 m
Cable Jacket Material
PVC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
804007A09M020
Zoro #
G1607882
UPC #
-
Country of Origin
United States
Item
Cordset
Product Type
Single Ended
End 1 Number of Pins
4
Cable Jacket Material
PVC
Cable Jacket Color
Yellow
IP Rating
IP67, IP68
Max. Amps
4 A
Maximum Operating Temperature
221 Degrees F
End 2 Gender and Plug End
Bare Wire
End 1 Keyway
Single
Temp. Range
-4 Degrees to 221 Degrees F
Number of Conductors
4
Max. Voltage
250 V AC, 250 V DC
End 1 Connection Type
M12
Standards
CSA Certified, UL Listed
End 1 Thread
M12
NEMA Rating
6P
Features
Highly Reliable Low Resistance Contact Design with Gold over Nickel Plating
End 2 Connection Type
Bare Wire
End 1 Gender and Plug End
Male Right Angle
Keyway
Single
Color
Brown, White, Blue, Black
End 1 Number of Keyways
1
Number of Wires
4
End 1 Mounting Orientation
Right Angle
Minimum Operating Temperature
-4 Degrees F
End 1 Gender
Male
Material - Connector Body
PUR
Coupling Style
Threaded
Wire/Cable Type
UL 2661
Material - O-Ring
Fluoro-elastomer
Current - Maximum per Contact
4.0A
Angle
90 Degree
Poles
4
Material - Coupling Nut
Nickel-plated Brass
CSA
LR6837
Application/Rating - NEMA
NEMA 6P
Gender
Male-Pigtail
Assembly Type
Single End Cordset
Orientation
90° to Pigtail
Connector Material
PUR Body, Nickel Plated Brass Nut
Material - Plating Mating
Gold
Voltage - Maximum
250V AC/DC
UL
E152210
Temperature Range - Operating
-20°C to +105°C
LED Indicator
No

Description

Cordset, End 1 Gender Male, End 1 Thread M12, End 1 Number of Pins 4, End 1 Mounting Orientation Right Angle, End 1 Connection Type M12, End 2 Gender Not Applicable, End 2 Thread Not Applicable, End 2 Connection Type Bare Wire, Cable Length 2 m, Cable Jacket Color Yellow, Cable Jacket Material PVC, Max. Amps 4 A, Wire Size 22 AWG, Maximum Operating Temperature 221 Degrees F, Minimum Operating Temperature -4 Degrees F, IP Rating IP67, IP68, Standards CSA Certified, UL Listed, NEMA Rating 6P
