Product Information
MFR #
WR4000A18C300
Zoro #
G5623476
UPC #
078678888411
Country of Origin
Mexico
Dimensions
Length
0.30m
Mounting Thread Size
1/2" - 14 NPT
Details
Item
Ultra-Lock (M12) Female Receptacle
Current Rating
4 A
Number of Poles
4
Mount Type
Flush
IP Rating
IP69K
Standards
CSA Listed
CSA
LR6837
Panel Mount
Front
Product Name
Ultra-Lock (M12)
Temperature Range - Operating
-25°C to +90°C
Poles
4
Wire/Cable Type
Leads, UL 1061
Orientation
Straight
Keyway
Single
Series
120084
Coupling Type
Internal Thread
Nema Rating
NEMA 6
Gender
Female
Material - Component
Nickel-plated Brass
Coil Volts
250V AC/DC
Description

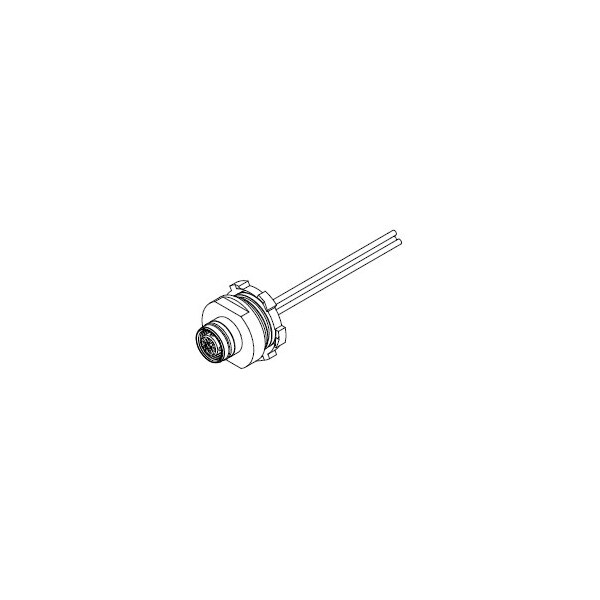

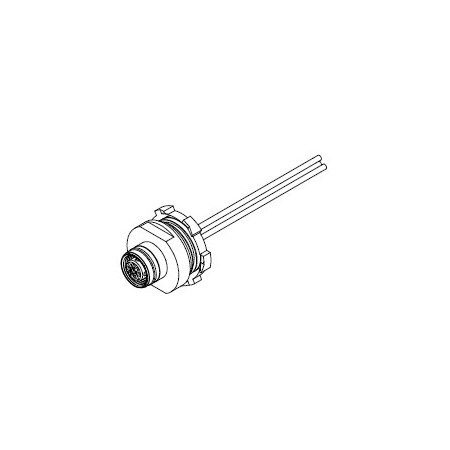

Ultra-Lock (M12) Female Receptacle, 4 Poles, 1/2" - 14 NPT Mounting Threads, 22 AWG PVC Leads, 0.30m (11.81") Length
