Product Information
MFR #
8R4006A16A120
Zoro #
G5625804
UPC #
78678824302
Country of Origin
Mexico
Dimensions
Length
0.30m
Mounting Thread Size
1/2" - 14 NPT
Details
Item
Micro Receptacle
Number of Poles
4
IP Rating
IP67
Mount Type
Flush
Standards
CSA Listed, UL Listed
Voltage
250V AC/DC
CSA
LR6837
Orientation
Straight
Panel Mount
Front
Keyway
Single
Material - Component
Gray Annodized Aluminum
UL
E152210
Poles
4
Gender
Male
Coupling Type
External Thread
Wire/Cable Type
UL 1061
Temperature Range - Operating
-20°C to +80°C
Series
120070
NEMA Rating
NEMA 6
Product Name
Micro-Change (M12)
Max. Amps
4 A
Description

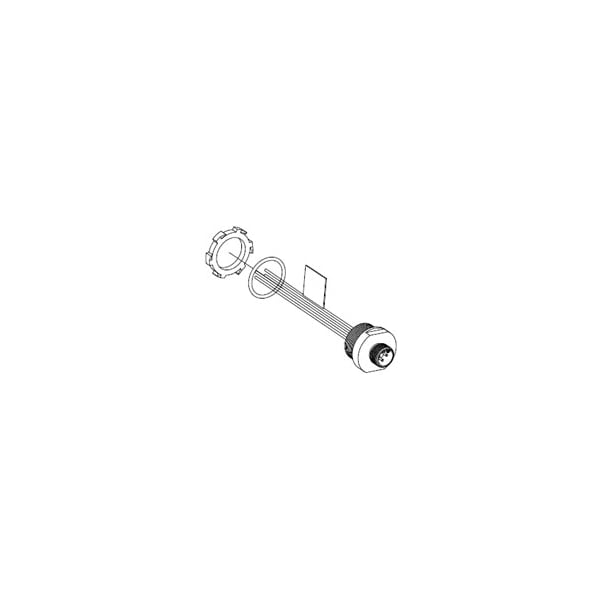

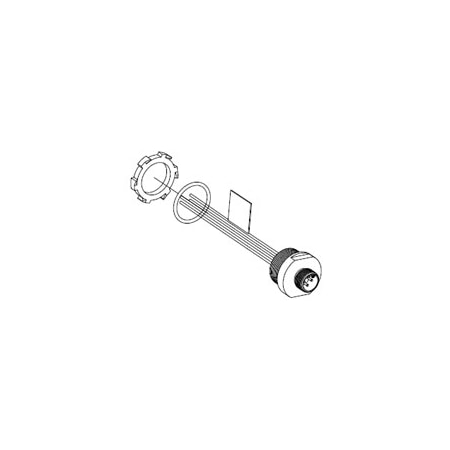

Micro-Change (M12) Receptacle, 4 Pole, 1/2" - 14 NPT Threads, Male (Straight) to 18 AWG Leads, 0.30m (11.81") Length
