Shop BRADLEY

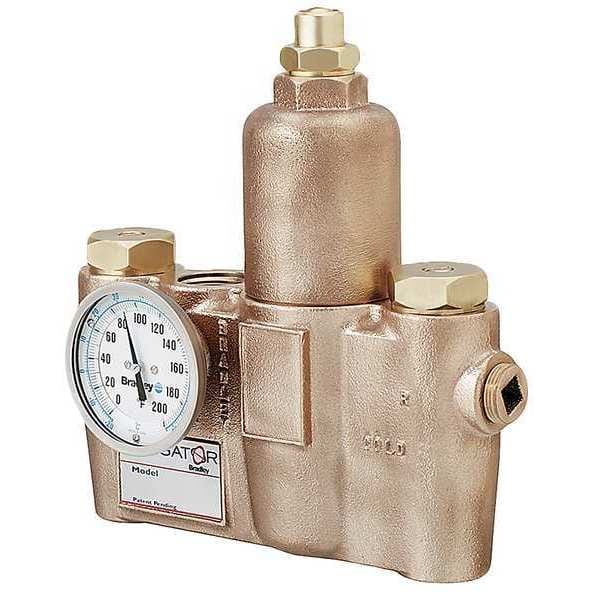

Mixing Valve, Bronze, 26 gpm

  • Mfr # S19-2100
  • Zoro # G0524885
product price:
$
1,956.50
/ea
Free Shipping & Returns

Key Features

Inlet Size
3/4 in
Outlet Type
FNPT
Flow Rate
26 gpm
Inlet Type
FNPT
Inlet Temperature (Hot)
180 Degrees F
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S19-2100
Zoro #
G0524885
UPC #
-
Country of Origin
United States
Item
Mixing Valve
Outlet Type
FNPT
Flow Rate
26 gpm
Inlet Type
FNPT
Inlet Temperature (Hot)
180 Degrees F
Standards
ANSI Z358.1
Temp. Range
65 Degrees to 95 Degrees F
Max. Pressure
125 psi
Body Material
Bronze
For Use With
Emergency Fixtures
Inlet Temperature (Cold)
120 Degrees to 140 Degrees F
Connection
Universal
Material of Construction
Bronze
Operating Pressure - Maximum
125 psi
Includes Temperature Gauge
Temperature Gauge Included
Inlet Temperature - Minimum Cold
120 Degrees F
Inlet Connection Type - Cold
NPT
Inlet Temperature - Maximum Cold
140 Degrees F
Inlet Temperature - Maximum Hot
180 Degrees F
Operating Temperature - Minimum Outlet
65 Degrees F
For Media
Water
Inlet Connection Gender - Hot
Female
Coefficient of Volume (Cv)
4.75
Inlet Temperature - Minimum Hot
120 Degrees F
Inlet Connection Gender - Cold
Female
Outlet Connection Type
NPT
Inlet Connection Type - Hot
NPT
Operating Temperature - Maximum Outlet
95 Degrees F
Operating Pressure - Minimum
45 psi

Description

Mixing Valve, Body Material Bronze, Flow Rate 26 gpm, Inlet Type FNPT, Outlet Type FNPT, Inlet Size 3/4 in, Outlet Size 1 in, Temp. Range 65 Degrees to 95 Degrees F, Max. Pressure 125 psi, Overall Height 9 5/8 in, Overall Width 5 1/8 in, Inlet Temperature (Cold) 120 Degrees to 140 Degrees F, Inlet Temperature (Hot) 180 Degrees F, For Use With Emergency Fixtures, Standards ANSI Z358.1
