Brady

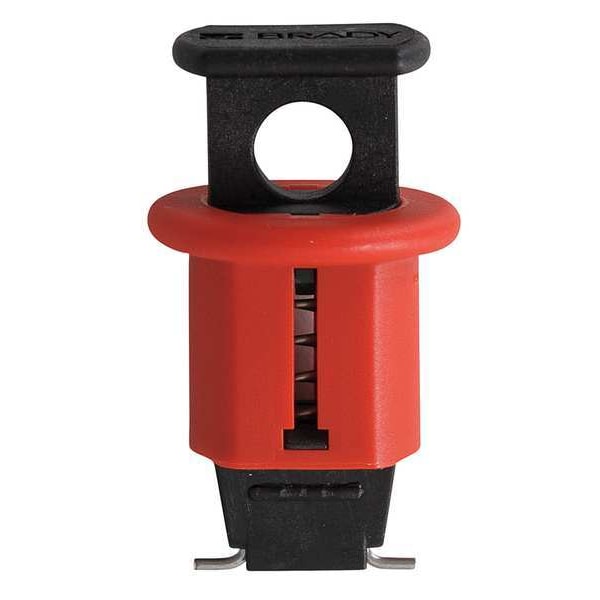

Breaker Lockout Pin Out Standard, PK6

product price: $73.49
/pk 6, $12.25/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Maximum Number of Padlocks 1
  • Material Fiberglass Reinforced Nylon
  • For Maximum Padlock Shackle Diameter 9/32 in
  • Lockout Material Fiberglass Reinforced Nylon
  • Height 1 5/8 in
See all product information

Product Information

Dimensions

For Maximum Padlock Shackle Diameter 9/32 in
Height 1 5/8 in
Length 9/16 in
Overall Width 0.95 in
Width 15/16 in
Overall Length 0.56 in
Overall Height 1.64 in
Padlock Shackle Max. Dia. 9/32 in
Overall Depth 0.54 in

Details

Item Circuit Breaker Lockout
Maximum Number of Padlocks 1
Material Fiberglass Reinforced Nylon
Lockout Material Fiberglass Reinforced Nylon
Lockout Color Red
For Use With Multi-Pole Breakers, Push Button, Single-Pole Breakers
Color Red
Standards ANSI Z244, OSHA 29 CFR 1910.147 (C) (4) (ii) (A) (1) / (c) (5) (ii) (C) (1)
Lockout Type Pin-Out, Standard
OSHA Compliant Yes
Circuit Breaker Voltage 120/277
For Voltage 120/277V AC
Mount Type Pin-Out
Resistance Properties Chemical Resistant
Features Installed Using the Push Button, Requires No Tools for Installation
Circuit Breaker Lockout Type Pin-Out
For Circuit Breaker Type Mini
Maximum Temperature 248 Degrees F
Minimum Temperature -4 Degrees F

Description

Circuit Breaker Lockout, Circuit Breaker Lockout Type Pin-Out, For Circuit Breaker Type Mini, For Maximum Padlock Shackle Diameter 9/32 in, For Voltage 120/277V AC, Maximum Number of Padlocks 1, Overall Height 1.64 in, Overall Length 0.56 in, Overall Width 0.95 in, Features Installed Using the Push Button, Requires No Tools for Installation, For Use With Multi-Pole Breakers, Push Button, Single-Pole Breakers, Lockout Color Red, Lockout Material Fiberglass Reinforced Nylon
