  11. Universal Programmable Thermostat, 7, 5-2, 5-1-1 Programs, 4 H 2 C, Wall Mount, Hardwired/Battery
This item is Discontinued.

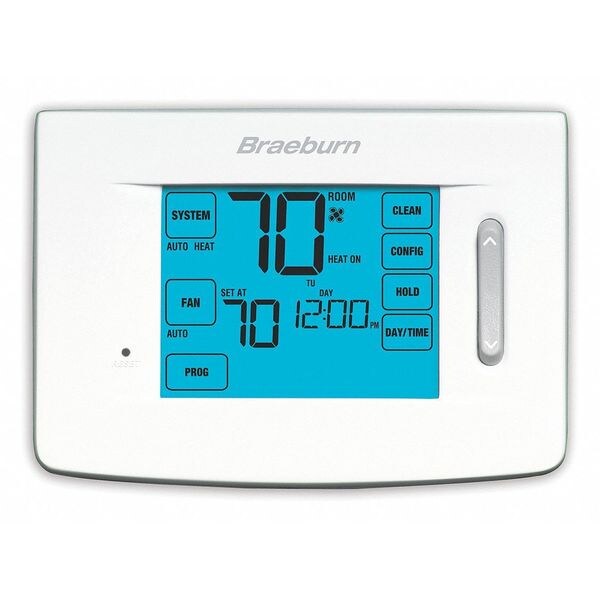

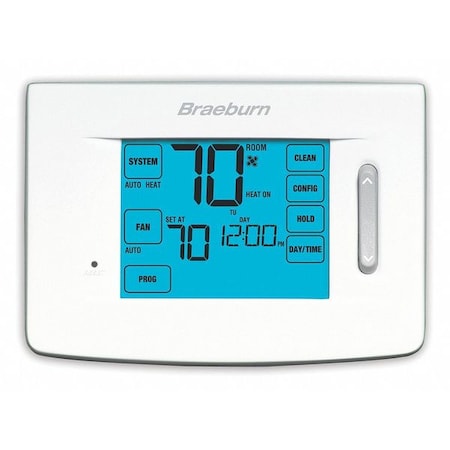

Braeburn Universal Programmable Thermostat, 7, 5-2, 5-1-1 Programs, 4 H 2 C, Wall Mount, Hardwired/Battery 5320

Universal Programmable Thermostat, 7, 5-2, 5-1-1 Programs, 4 H 2 C, Wall Mount, Hardwired/Battery (Discontinued)

  • Mfr # 5320
  • Zoro # G7825259
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
5320
Zoro #
G7825259
UPC #
833732001881
Country of Origin
Malaysia

Dimensions

Height
5 9/16"
Width
4 23/32"
Depth
1 3/16 in
Display Size
5 sq in
Overall Width
5 9/16 in
Overall Height
3 15/16 in
Overall Depth
1 3/16 in

Details

Item
Universal Programmable Thermostat
Voltage
18/30VAC
Stages Heat
4
Mounting Type
Sub-Base
Mounting Location
Wall
Color
White
Control Range
45 Degrees to 90 Degrees F
System Switching
Auto-Heat-Cool
Stages Cool
2
Dual Transformer Compatible
Yes
Power Method
Hardwired/Battery
750mV Compatible
Yes
Programs per Week
7, 5-2, 5-1-1
Temp. Settings per Day
0, 1, 2, 4
Green Certification or Other Recognition
Energy Aware
Temporary Program Override
Yes
Key Pad Lockout
Yes
For Use With
A/C, Furnace and Heat Pump Systems
WiFi Capability
No
Low Battery Indicator
Yes
Humidification Control
No
Dehumidification Control
No
Standards
California Title 24
Automatic Changeover
Yes
Display Color
Blue
Temporary Temperature Hold
Yes
Batteries Included
Yes
Agency Compliance
RoHS
Filter Indicator
Yes
Display Type
LCD, Backlit
Battery Backup
Yes
Features
Touchscreen, Auto or Manual Changeover, Speed Bar Button, Temperature Limit, Indoor/Outdoor Remote Sensing, Speed Set Programming, Selectable Service Monitor, Keypad Lockout, Reset Button, Programmable Fan, Residential and Commercial Mode, Auxiliary Heat Fossil Fuel, Economizer Control
Programmable Fan
Yes
Temperature Limiting
Yes
Terminal Designations
A, G, Rc, Rh, W2/AUX2, W3/O/B, Y1, Y2, W1/E/AUX1, C, L, S1, S2
Fan Switching
Auto-On-Program
Fan Settings
Auto-On-Program
Sensor Location
Remote
Changeover Type
Automatic
Operating Humidity Range
5 to 95 %
Includes Batteries
Yes
System/Fan Settings
Auto-Cool-Heat/Auto-On-Program
Filter Change Reminder
Yes
Temperature Differential
0.5, 1, or 2 Degrees F; 1, 2, 3, 4, 5, or 6 Degrees F
Temperature Sensitivity
+/-1 Degrees F
Application
Heat Pump Systems
Millivolt Compatible
Yes
Electrical Connection Type
Hardwired
Smart Connectivity
No Connectivity
Backlit Screen
Yes
Temperature settings per day
0, 1, 2, 4
Compatible System Type
Hydronic Systems
Contact Rating
18 to 30V AC
Battery Type
(2) AA Batteries
Temperature Control Range
+45 Degrees to +90 Degrees F
System Settings
Auto-Cool-Heat
Thermostat Type
Low Voltage
Programming Capability
5-2 Day, 7 Day

Description

Low Voltage Thermostat, Stages Heat 4, Stages Cool 2, Temp. Settings per Day 0, 1, 2, 4, Programs per Week 7, 5-2, 5-1-1, or Nonprogrammable, Terminal Designations RC, RH, W3/O/B, W2/AUX2, W1/E/AUX1, C, L, A, Y2, Y1, G, S2, S1, WiFi Capability No, System Switching Auto-Heat-Cool, Fan Switching Auto-On-Program, Display Size 5 sq in, Display Type Backlit, Display Color Blue, Key Pad Lockout Yes, Programmable Fan Yes, Automatic Changeover Yes, Humidification Control No, Dehumidification Control No
