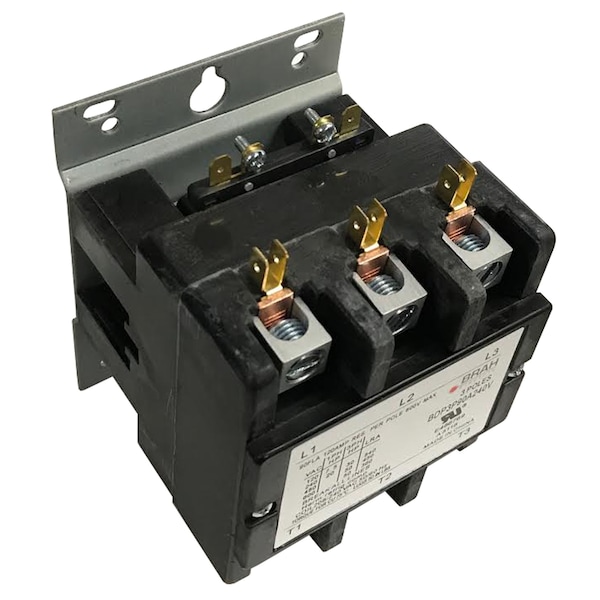

Definite Purpose Contactor, 24 V, 3 P, Non-Reversing, 3 Phase, Box Lug
Mfr # BDP3P90A24V
Zoro # G015542677
product price: $307.99
/ea
Free Shipping & Returns
Key Features
Coil Voltage
24V
Series
Elite
Number of Poles
3
Reversing Capability
Non-Reversing
Full Load Current - Resistive
90 A
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
BDP3P90A24V
Zoro #
G015542677
UPC #
699252494455
Country of Origin
China
Dimensions
Width
4 in
Depth
4 in
Details
Item
Definite Purpose Contactor
Coil Voltage
24V
Series
Elite
Number of Poles
3
Reversing Capability
Non-Reversing
Full Load Current - Resistive
90 A
Full Load Current - Inductive
120 A
Phase
3
Terminal Connection Type
Box Lug
Voltage
600V
Horsepower @ Three Phase - 480V AC
15 hp
Horsepower @ Single Phase - 120V AC
7.5 hp
Horsepower @ Three Phase - 240V AC
30 hp
Horsepower @ Single Phase - 240V AC
20 hp
Horsepower @ Three Phase - 600V AC
60 hp
Contactor Style
IEC
Description
3P, 90A, 600V, definite purpose contactor, complete with 24VAC control coil, UL recognized, by BRAH Electric
- • Designed & manufactured to OEM specifications, for direct fit & function with OEM products
