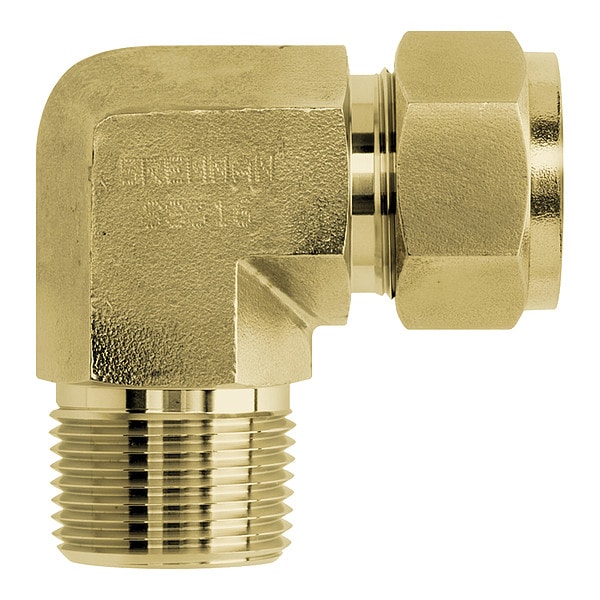

Elbow, Brass, Tube 1/4 in, MNPT 3/8 in
- Mfr # N2501-04-04-B
- Zoro # G912535048
product price:Â
$
9.89
/ea
Key Features
Specific Fitting Shape
90 Degrees Elbow
Standards
AS9100D Certified, ISO 9001:2015 Certified, ITAR, Nadca Certified
Hex Size
14 mm
Fitting Side A Connection Type
Tube
Maximum Operating Temperature
100 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- N2501-04-04-B
- Zoro #
- G912535048
- UPC #
- -
- Country of Origin
- India
- Item
- Compression Fitting Elbow
- Specific Fitting Shape
- 90 Degrees Elbow
- Standards
- AS9100D Certified, ISO 9001:2015 Certified, ITAR, Nadca Certified
- Fitting Side A Connection Type
- Tube
- Maximum Operating Temperature
- 100 Degrees F
- Minimum Operating Temperature
- -20 Degrees F
- Compatible Fitting Brands
- BI-Lok, Gyrolok, Hy-Lok, Let-Lok, Parker A-LOK, Parker CPI, Swagelok, Tylok CBC-Lok
- System of Measurement
- Imperial/Metric
- Fitting Material
- Brass
- Series
- N2501
- Fitting Side B Connection Type
- MNPT
- Application
- Hydraulics, Pneumatics
- Compatible Tube Hardness
- RB 75-80
- Resistance Properties
- Burst Point Pressure-Resistant, Corrosion-Resistant, Temperature Cycling-Resistant, Vibration-Resistant
- Maximum Operating Pressure
- 3624 psi
- Material Grade
- C37700
- For Media Type
- Gases
- Operating Temperature - Maximum
- 100 Degrees F
- Fitting Side 2 Connection Type
- MNPT
- Operating Pressure - Maximum
- 3,624 psi
- Fitting Side 1 Connection Type
- Tube
- Fitting Shape
- 90 Degrees Elbow
- Operating Temperature - Minimum
- -20 Degrees F
Dimensions
- Hex Size
- 14 mm
- Fitting Side B Pipe Size
- 1/4 in
- Compatible Tube Wall Thickness
- 0.028 in
- Fitting Side A Tube Outer Diameter
- 1/4 in
- Fitting Side B Tube Outer Diameter
- 1/4 in
- Overall Length
- 1 1/16 in
- Thread Size B
- 1/4-18
- Fitting Side 2 Pipe Size
- 1/4 in
- Fitting Side 1 Tube Outer Diameter
- 1/4 in
- Thread Size 2
- 1/4-18
- Wire Rope Length
- 1 1/16 in
- Length
- 1 1/16 in
Description
Compression Fitting Elbow, Application Hydraulics, Pneumatics, Fitting Side A Connection Type Tube, Fitting Side B Connection Type MNPT, Finish/Coating Not Applicable, Fitting Material Brass, Fitting Side A Tube Outer Diameter 1/4 in, Fitting Side B Tube Outer Diameter 1/4 in, Material Grade C37700, Maximum Operating Pressure 3624 psi, Maximum Operating Temperature 100 Degrees F, Overall Length 1 1/16 in, Specific Fitting Shape 90 Degrees Elbow, Fitting Side A Pipe Size Not Applicable
