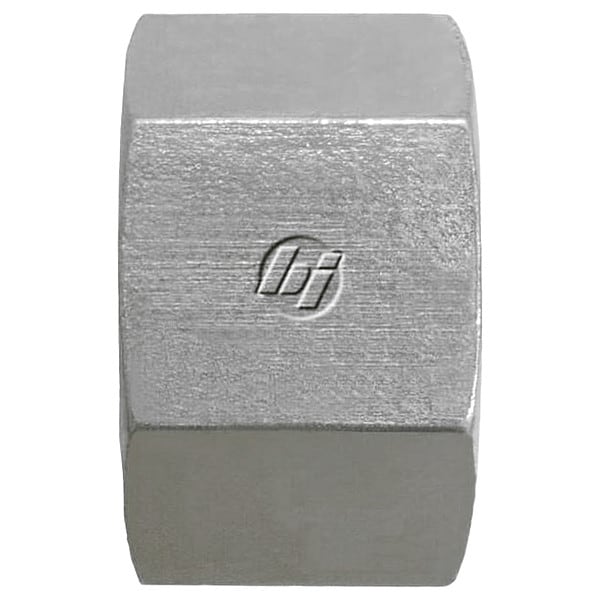

Nut, StainlessSteel, Compression, 385/16mm
Mfr # D0318-S38-SS
Zoro # G610190044
product price:Â
$
45.49
/ea
Key Features
Specific Fitting Shape
Nut
Fitting Connection Type
Compression
Standards
ABS, BV, DIN 3870, DIN 8434-1, DNV GL, Lloyd's Register, RINA
Hex Size
60 mm
Fitting Material
Stainless Steel
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- D0318-S38-SS
- Zoro #
- G610190044
- UPC #
- -
- Country of Origin
- Germany
Dimensions
- Hex Size
- 60 mm
- Overall Length
- 32 1/2 mm
- Compatible Tube Outer Diameter
- 38 5/16 mm
- Thread Size
- M52x2
- Wire Rope Length
- 32 1/2 mm
- Length
- 32 1/2 mm
Details
- Item
- Compression Fitting Nut
- Specific Fitting Shape
- Nut
- Fitting Connection Type
- Compression
- Standards
- ABS, BV, DIN 3870, DIN 8434-1, DNV GL, Lloyd's Register, RINA
- Fitting Material
- Stainless Steel
- Minimum Operating Temperature
- -425 Degrees F
- Maximum Operating Pressure
- 6090 psi
- Application
- Hydraulics
- System of Measurement
- Metric
- Series
- Volz
- Material Grade
- 316
- Maximum Operating Temperature
- 1,200 Degrees F
- Operating Temperature - Maximum
- 1,200 Degrees F
- Operating Temperature - Minimum
- -425 Degrees F
- Fitting Shape
- Nut
- For Media Type
- Acids, Gases, Oils
- Operating Pressure - Maximum
- 6,090 psi
- Product Type
- Compression Fitting Nut
Description
Compression Fitting Nut, Application Hydraulics, Finish/Coating Not Applicable, Fitting Material Stainless Steel, Material Grade 316, Maximum Operating Pressure 6090 psi, Maximum Operating Temperature 1,200 Degrees F, Overall Length 32 1/2 mm, Thread Size M52x2, Specific Fitting Shape Nut, System of Measurement Metric, Compatible Tube Outer Diameter 38 5/16 mm, Series Volz, Standards ABS, BV, DIN 3870, DIN 8434-1, DNV GL, Lloyd's Register, RINA, Compatible Tube Hardness Not Applicable
