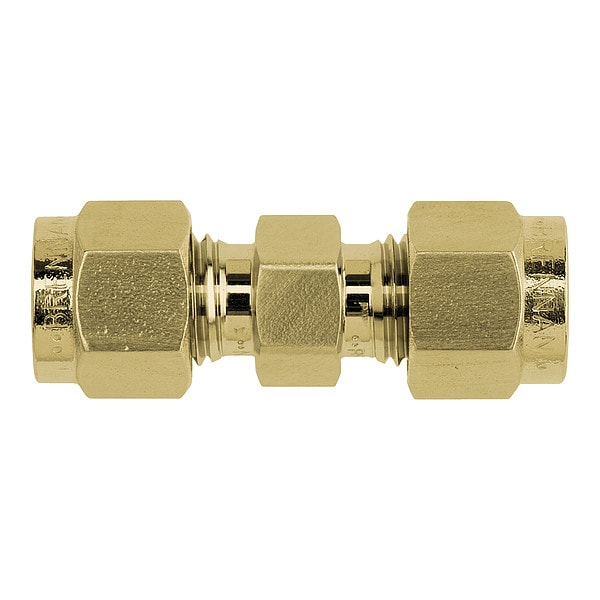

Strt, Brass, Tube 1 in, MNPT 1/16 in
- Mfr # N2403-16-16-B
- Zoro # G912486210
product price:Â
$
105.99
/ea
Free Shipping & Returns
Key Features
Specific Fitting Shape
Straight
Standards
AS9100D Certified, ISO 9001:2015 Certified, ITAR, Nadca Certified
Hex Size
35 mm, 38 mm
Compatible Tube Hardness
RB 75-80
Compatible Tube Wall Thickness
0.083 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- N2403-16-16-B
- Zoro #
- G912486210
- UPC #
- -
- Country of Origin
- India
- Item
- Compression Fitting Union
- Specific Fitting Shape
- Straight
- Standards
- AS9100D Certified, ISO 9001:2015 Certified, ITAR, Nadca Certified
- Compatible Tube Hardness
- RB 75-80
- Minimum Operating Temperature
- -20 Degrees F
- System of Measurement
- Imperial/Metric
- Compatible Fitting Brands
- BI-Lok, Gyrolok, Hy-Lok, Let-Lok, Parker A-LOK, Parker CPI, Swagelok, Tylok CBC-Lok
- Fitting Side A Connection Type
- Tube
- Fitting Side B Connection Type
- Tube
- Series
- N2403
- Fitting Material
- Brass
- Application
- Hydraulics, Pneumatics
- Resistance Properties
- Burst Point Pressure-Resistant, Corrosion-Resistant, Temperature Cycling-Resistant, Vibration-Resistant
- Maximum Operating Temperature
- 100 Degrees F
- Maximum Operating Pressure
- 1486 psi
- Material Grade
- CA360
- Fitting Shape
- Straight
- Operating Temperature - Minimum
- -20 Degrees F
- Operating Temperature - Maximum
- 100 Degrees F
- Fitting Side 2 Connection Type
- Tube
- Operating Pressure - Maximum
- 1,486 psi
- For Media Type
- Gases
- Fitting Side 1 Connection Type
- Tube
Dimensions
- Hex Size
- 35 mm, 38 mm
- Compatible Tube Wall Thickness
- 0.083 in
- Fitting Side A Tube Outer Diameter
- 1 in
- Fitting Side B Tube Outer Diameter
- 1 in
- Overall Length
- 2 9/16 in
- Fitting Side 2 Tube Outer Diameter
- 1 in
- Fitting Side 1 Tube Outer Diameter
- 1 in
- Wire Rope Length
- 2 9/16 in
- Length
- 2 9/16 in
Description
Compression Fitting Union, Application Hydraulics, Pneumatics, Fitting Side A Connection Type Tube, Fitting Side B Connection Type Tube, Finish/Coating Not Applicable, Fitting Material Brass, Fitting Side A Tube Outer Diameter 1 in, Fitting Side B Tube Outer Diameter 1 in, Material Grade CA360, Maximum Operating Pressure 1486 psi, Maximum Operating Temperature 100 Degrees F, Overall Length 2 9/16 in, Specific Fitting Shape Straight, Fitting Side A Pipe Size Not Applicable
