Shop BRENNAN INDUSTRIES

Strt, SS, Comp. 30 mm, Comp. 6 mm

  • Mfr # D2404-S30-24-SS

  • Zoro # G110190186

product price:  $240.99
/ea
Free Shipping & Returns

Key Features

Specific Fitting Shape
Straight
Hex Size
50 mm
Standards
ABS (American Bureau of Shipping), ANSI B1.20.1, BV (Bureau Veritas), DIN 2353, DNV GL, ISO 8434-1, Lloyd's Register, RINA (Registro Italiano Navale)
Fitting Material
Stainless Steel
Fitting Side A Tube Outer Diameter
30 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
D2404-S30-24-SS
Zoro #
G110190186
UPC #
-
Country of Origin
Germany

Dimensions

Hex Size
50 mm
Fitting Side A Tube Outer Diameter
30 mm
Thread Size B
1 1/2-11 1/2
Fitting Side B Pipe Size
1 1/2 in
Overall Length
74 3/16 mm
Fitting Side A Pipe Size
30 mm
Thread Size A
M42 x 2
Fitting Side 2 Pipe Size
1 1/2 in
Thread Size 1
M42 x 2
Thread Size 2
1 1/2-11 1/2
Fitting Side 1 Tube Outer Diameter
30 mm
Wire Rope Length
74 3/16 mm

Details

Item

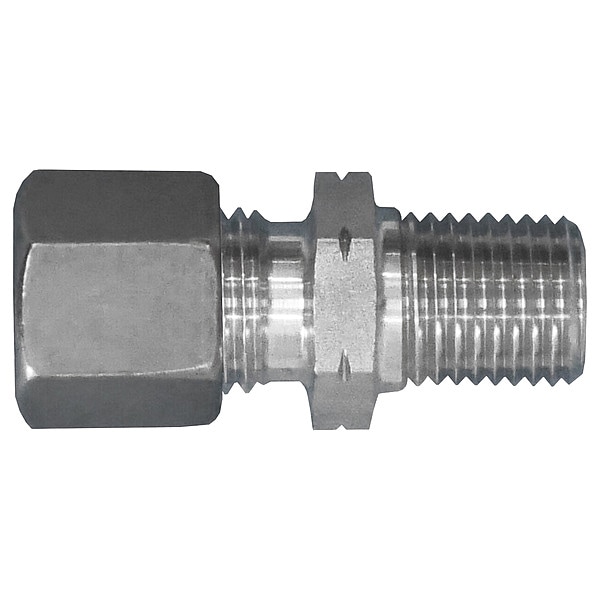

Compression Fitting Adapter
Specific Fitting Shape
Straight
Standards
ABS (American Bureau of Shipping), ANSI B1.20.1, BV (Bureau Veritas), DIN 2353, DNV GL, ISO 8434-1, Lloyd's Register, RINA (Registro Italiano Navale)
Fitting Material
Stainless Steel
Series
Volz
Application
Hydraulics
Minimum Operating Temperature
-425 Degrees F
Compatible Fitting Brands
Parker (EO/EO2)
Maximum Operating Pressure
4565 psi
Fitting Side B Connection Type
MNPT
Maximum Operating Temperature
1,200 Degrees F
Material Grade
316
Resistance Properties
Corrosion-Resistant, Temperature-Resistant
System of Measurement
Imperial/Metric
Fitting Side A Connection Type
Compression
Fitting Side 1 Connection Type
Compression
Operating Pressure - Maximum
4,565 psi
Operating Temperature - Maximum
1,200 Degrees F
Fitting Shape
Straight
Operating Temperature - Minimum
-425 Degrees F
Fitting Side 2 Connection Type
MNPT
For Media Type
Acids, Gases, Lubricants

Description

Compression Fitting Adapter, Application Hydraulics, Fitting Side A Connection Type Compression, Fitting Side B Connection Type MNPT, Finish/Coating Not Applicable, Fitting Material Stainless Steel, Fitting Side A Tube Outer Diameter 30 mm, Material Grade 316, Maximum Operating Pressure 4565 psi, Maximum Operating Temperature 1,200 Degrees F, Overall Length 74 3/16 mm, Specific Fitting Shape Straight, Fitting Side A Pipe Size 30 mm, Fitting Side B Pipe Size 1 1/2 in
