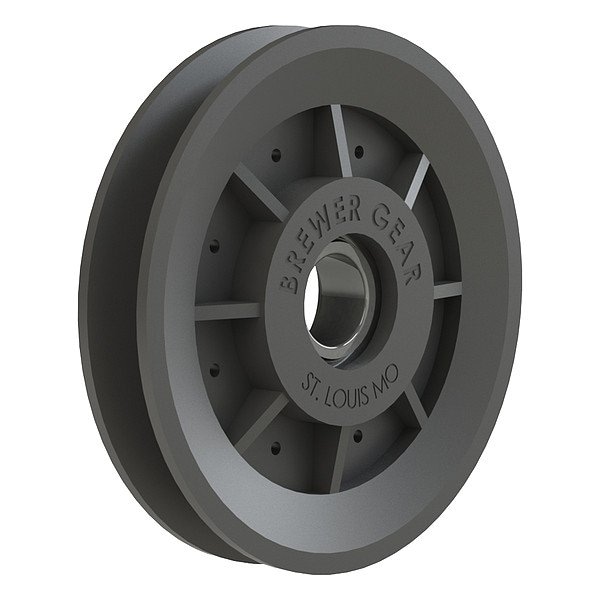

V-Belt Idler Pulley, Ball, 5 in OD, Nylon
Mfr # BV5001
Zoro # G423360795
Key Features
Specifications
Product Information
- MFR #
- BV5001
- Zoro #
- G423360795
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Outside Diameter
- 5 in
- Face Width
- 0.81 in
- Face Diameter
- 3.84 in
- Bore Diameter
- 5/8 in
- For Belt Trade Size
- B
Details
- Item
- V-Belt Idler Pulley
- Material Fabrication
- Composite
- Number of Grooves
- 1
- Pulley Material
- Nylon
- System of Measurement
- Inch
- Bearing Type
- Ball
Description
The BREWER MACHINE & GEAR - BV5001 is a V-belt idler pulley is intended for use as a V-belt idler pulley within belt drive systems. It is used as a V-belt idler to guide belt travel and support belt alignment and tension when installed in accordance with the applicable belt system specifications. The pulley is made from composite materials with a nylon surface, is compatible with V-belts of belt trade size B based on the specified groove/profile dimensions and featuring a single groove to fit the belt profile. It is measured using the inch system for standardization.
Key Features:
- Bearing type: Ball – is equipped with a ball bearing.
- Bore diameter: 5/8 inch.
- Face diameter: 3.84 inches.
- Face width: 0.81 inch.
- Number of grooves: 1 – designed for a single V-belt.
- Outside diameter: 5 inches.
- Pulley material: Nylon – has a nylon surface on the pulley groove for belt contact.
- Material fabrication: Composite – the overall construction material of the pulley.
