Shop BRISKHEAT

Electric Heating Cables, 240V, 240VAC, 100 FT Length

  • Mfr # FFRG25-100
  • Zoro # G5471608
product price:
$
528.99
/ea
Free Shipping & Returns

Key Features

Cable Length
100 FT
Heater Voltage
240V AC
For Use With
Downspouts, Gutters, Standard Pitched Roofs, Standard Roofing Materials
Length
100 ft

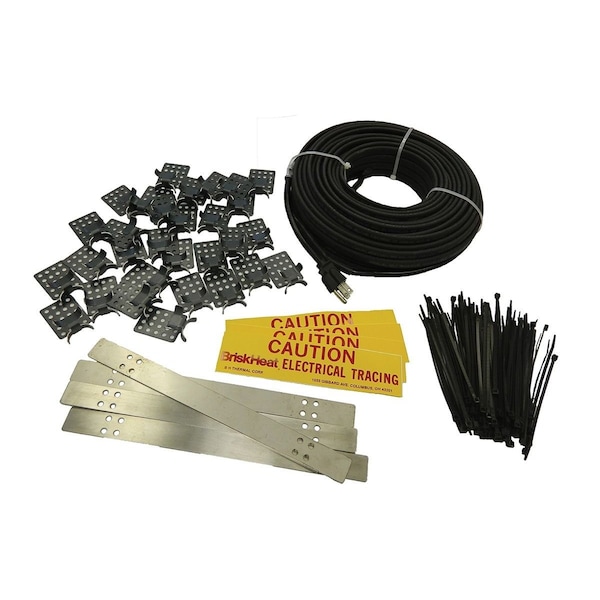

Includes
Downspout Hanger Brackets, Roof Clips, Speed Trace Heating Cable, UV Resistant Ties
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FFRG25-100
Zoro #
G5471608
UPC #
-
Country of Origin
China
Item
Electric Heating Cable
Heater Voltage
240V AC
For Use With
Downspouts, Gutters, Standard Pitched Roofs, Standard Roofing Materials
Includes
Downspout Hanger Brackets, Roof Clips, Speed Trace Heating Cable, UV Resistant Ties
Watts per Foot @ 40F
11.2 W
Standards
cETLus
Watts per Cable @ 40F
400 W
Phase
1
Voltage
208V AC to 277V AC
Cable Type
Self-Regulating
Cable Cover Material
Thermoplastic
Max. Operating Temp.
150 Degrees F
Min. Operating Temp.
-40 Degrees F
NEMA Plug Configuration
5-15P
Wattage Output
500 W, 900 W
For Use Indoors/Outdoors
Indoor/Outdoor
Power Connection Type
5-15P
Heating Cable Shielding Material
Tinned Copper Metal Braid
Operating Temperature - Minimum
-40 Degrees F
Operating Temperature - Maximum
150 Degrees F
Heating Cable Ground Wire
Yes
Thermostat Included
No
Control Volts
240V
Color
Gray
Heating Method
Conduction
Heating Cable Sleeve Material
Thermoplastic Elastomer
Cold Lead
16 AWG
Heating Cable Spacing
0.5 in
Ambient Temp. Range
-40 to 185 Degrees F
Number of Conductors
2
Heating Cable Insulation
Moisture and Flame-Resistant Thermoplastic Elastomer
Amperage
2.084 A
Control Range
Self-Regulating up to 150F
Control Type
Thermostat (Not Included)
Heating Cable Conductor Type
Semi-conductive polymer core embedded with a carbon-graphite network
Compatible Manufacturer Model Number
FFRG25-100
Heating Capacity
17.06 BtuH
Heating Cable Wire Gauge
16 AWG

Dimensions

Cable Length
100 FT
Length
100 ft
Overall Length
100 ft
Wire Rope Length
100 ft
Overall Width
1/2 in
Heating Cable Diameter
62/125 in
Manufacturers Warranty Length
12 mo
Min. Bend Radius
1/2 in

Description

Electric Heating Cable, For Use With Flooring Type Not Applicable, Overall Length 100 ft, Overall Width 1/2 in, Thermostat Included No, Voltage 208 to 277V AC, Wattage Output per Square Foot Not Applicable, Wattage Output 500 W, 900 W, Amperage 2.084 A, Control Current Not Applicable, Control Range Self-Regulating up to 150F, Control Type Thermostat (Not Included), Control Volts 240V, Ambient Temp. Range -40 to 185 Degrees F, Cold Lead 16 AWG
