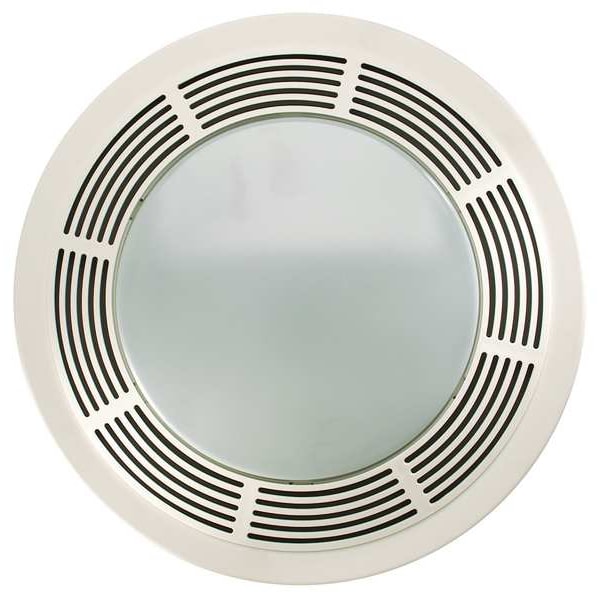

Ceiling Bathroom Fan, 100 cfm cfm, 4 in Duct Dia., 120V AC, With Light

  • Mfr # 750

  • Zoro # G2126722


product price: $172.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Mounting Location
Ceiling
CFM @ 0.100-In. SP
100 cfm
Includes
Duct Connector With Damper, Mounting Ears To Attach To Ceiling Joist
Phase
1
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
750
Zoro #
G2126722
UPC #
026715148677
Country of Origin
China

Dimensions

Duct Dia.
4 in
Housing Height
6 in
Housing Length
9 in
Height (In.)
6"
Grille Width
15 in
Grille Length
15 in
Width (In.)
9"
Housing Width
9 in
Overall Height
6 in
Overall Width
9 in
Profile Width Family
Single-Wide
Profile Height Family
Medium
Duct Diameter
4 in
Overall Depth
9 in

Details

Voltage
120V AC
Mounting Location
Ceiling
CFM @ 0.100-In. SP
100 cfm
Includes
Duct Connector With Damper, Mounting Ears To Attach To Ceiling Joist
Phase
1
Amps
1.9
Housing Material
Steel
Number of Speeds
1
Sones @ 0.100-In. SP @ 5 Ft.
3.5
Lighted
With Light
Heater
Without Heater
Motion Sensing
No
Profile
Medium
Discharge
Horizontal
Humidity Sensing
No
Construction Material
Metal
Hz
60 Hz
Night-Light
No
Requires
2CUX8 100W Incandescent Lamp and 7C7-130V Night Light
Item
Bathroom Fan
Standards
HVI Certified, UL Listed
Grille Material
Polymeric
Grille Color
White
Motor Type
Permanently Lubricated
Maximum Noise Level
5 sones
Maximum Coverage Area
90 sq ft
Night Light Wattage
7 W
Noise Level @ 0.100 in SP @ 5 ft
5 sones
Duct Shape
Round
Includes Grill
Yes
Frequency
60 Hz
Mounting Orientation
Horizontal
Sensor Type
Humidity
Discharge Direction
Horizontal
Full Load Current
1.9 A
Exhaust Airflow @ 0.100 in SP
100 cfm
Includes Light Bulbs
No
Vent Design
Ducted
Primary Light Type
A19
Housing Finish
Galvanized
Nameplate Voltage
120V AC
Roomside Installation
No
Number of Primary Lights
1
Blower Wheel Material
Polypropylene
Primary Light Wattage
100 W
Primary Lighting Technology
Incandescent

Description

Bathroom Fan, Discharge Direction Horizontal, Duct Diameter 4 in, Duct Shape Round, Housing Finish Galvanized, Housing Material Steel, Heater Without Heater, Includes Duct Connector With Damper, Mounting Ears To Attach To Ceiling Joist, Mounting Location Ceiling, Exhaust Airflow @ 0.100 in SP 100 cfm, Maximum Noise Level 5 sones, Noise Level @ 0.100 in SP @ 5 ft 5 sones, Maximum Coverage Area 90 sq ft, Number of Speeds 1, Overall Depth 9 in, Overall Height 6 in, Overall Width 9 in

Restrictions

This item has been restricted from sale in the following states: NJ
