  9. Exhaust Fan, 16 In, 2847 CFM
Shop All Exhaust and Supply Fan Accessories
Dayton

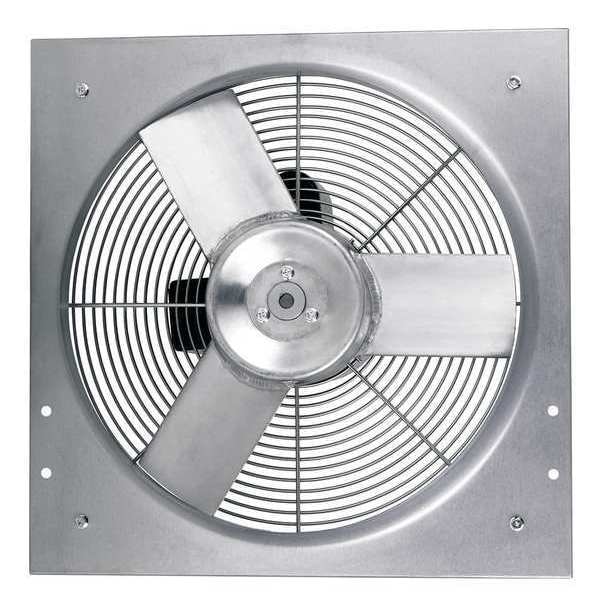

Exhaust Fan, 16 In, 2847 CFM

product price: $132.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Galvanized Wall Shutter No. 1C743
  • Speed Control No
  • Max. Depth (In.) 9 3/4 in
  • Dimension D (In.) 16 3/8 in
  • Fan Voltage 115/230V AC
See all product information

Product Information

Dimensions

Max. Depth (In.) 9 3/4 in
Dimension D (In.) 16 3/8 in
Outside Dia. (In.) 20 in
Width (In.) 20 in
Dimension B (In.) 7 in
Flange Width (In.) 1 in
Dimension C (In.) 2 3/4 in
Blade Dia. 16 in
Venturi Depth (In.) 2 3/4 in
Height (In.) 20 in
Venturi Clearance Dia. (In.) 16 7/16 in
Dimension A (In.) 20 in
Inside Dia. (In.) 16 7/16 in
Overall Width 20 in
Overall Height 20 in
Venturi Depth 3 in
Flange Width 1 in
Overall Diameter 20 in
Duct Diameter 16 1/2 in
Venturi Diameter 16 1/2 in
For Cut-Out Diameter 16 1/2 in
Blade Diameter 16 in
Overall Depth 9 3/4 in

Details

Item Exhaust Fan
Exhaust/Supply Fan Item Exhaust Fan
Galvanized Wall Shutter No. 1C743
Speed Control No
Fan Voltage 115/230V AC
Motor RPM 1,750 RPM
Guard Material Steel
Number of Blades 3
Hz 60
CFM @ 0.000-In. SP 2,883 cfm
Fiberglass Wall Shutter No. 5C212
Full Load Amps 2.8/1.5
Phase 1
Type Heavy Duty Direct Drive
Voltage 115/230
Motor Insulation Class B
CFM @ 0.375-In. SP 2,120 cfm
Sones @ 0.000-In. SP @ 5 Ft. 16.8
CFM @ 0.500-In. SP 1,739 cfm
Bearing Type Ball
Frame Finish Galvanized
Agency Compliance UL and cUL Listed, AMCA
Max. Ambient Temp. (F) 104 Degrees F
For Use With General Ventilation Applications
Exhaust/Supply Fan Motor HP 1/4 hp
Frame Material Steel
CFM @ 0.250-In. SP 2,417 cfm
Wire Guard Finish Zinc Plated
Sones @ 0.125-In. SP @ 5 Ft. 16.2
CFM @ 0.125-In. SP 2,650 cfm
Watts 330 W
Drive Package Included No
Aluminum Wall Shutter No. 4C557
Motor Enclosure Totally Enclosed Air Over
Propeller Material Aluminum
Mounting Position Vertical
Standards AMCA, UL and cUL Listed
Shop By Closeouts
Exhaust Airflow @ 0.375 in SP 2,120 cfm
Motor Speed 1,750 RPM
Vent Design Ductless
Exhaust Airflow @ 0.250 in SP 2,417 cfm
Includes Motor Yes
Guard Finish Zinc Plated
Includes Dehumidistat No
Guard Type Intake
Noise Level @ 0.125 in SP @ 5 ft 16 sones
Method of Construction Stamped
Assembled Assembled
Ventilation Type Exhaust
Fan Style Panel
Number of Speeds 1
Drive Type Direct Drive
Exhaust Airflow @ 0.500 in SP 1,739 cfm
Electrical Connection Hardwired
Exhaust Airflow @ 0.100 in SP 2,650 cfm
Motor Horsepower 1/4 hp
Exhaust Airflow @ 0.125 in SP 2,650 cfm
Exhaust Airflow @ 0.000 in SP 2,883 cfm
Maximum Ambient Operating Temperature 104 Degrees F
Noise Level @ 0.000 in SP @ 5 ft 16.8 sones
Nameplate Voltage 115/230V AC
Maximum Noise Level 16.8 sones
Speed Controllable No
Duct Shape Round
Blade Material Aluminum
Wattage 325 W, 334 W

Description

Exhaust Fan, Assembled Assembled, Blade Diameter 16 in, Blade Material Aluminum, Drive Type Direct Drive, Duct Diameter 16 1/2 in, Exhaust Airflow @ 0.000 in SP 2,883 cfm, Frame Finish Galvanized, Frame Material Steel, Guard Finish Zinc Plated, Guard Material Steel, Guard Type Intake, Includes Dehumidistat No, Maximum Noise Level 16.8 sones
