Shop BROAN-NUTONE

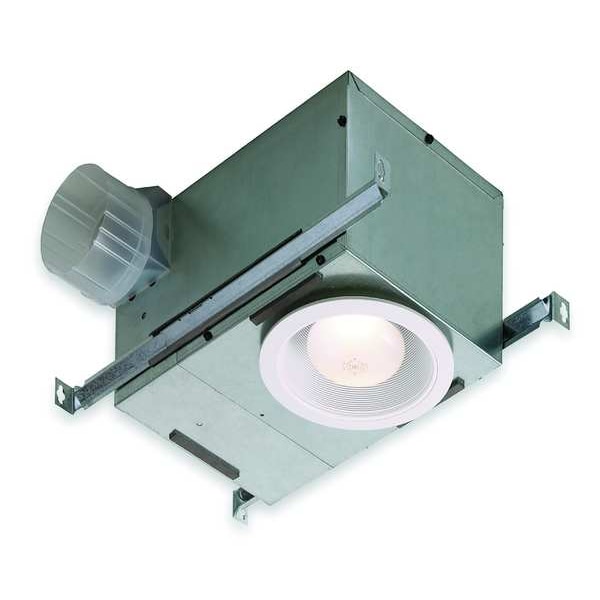

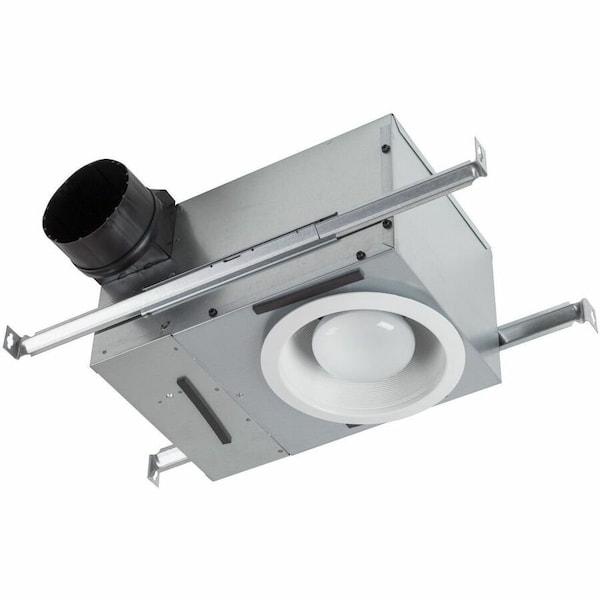

Ceiling Recessed Fan, 70 cfm cfm, 4 in Duct Dia., 120V AC, With Light

  • Mfr # 744
  • Zoro # G0402166
product price:
$
167.99
/ea
Free Shipping & Returns

Key Features

Voltage
120V AC
Mounting Location
Ceiling
CFM @ 0.100-In. SP
70 cfm
Includes
Mounting Brackets
Phase
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
744
Zoro #
G0402166
UPC #
026715163014
Country of Origin
United States

Dimensions

Duct Dia.
4 in
Housing Length
8 1/4 in
Height (In.)
6-7/8"
Grille Length
7 3/8 in
Grille Width
7 1/2 in
Width (In.)
12-3/4"
Housing Width
12 3/4 in
Housing Height
6 7/8 in
Overall Height
6 7/8 in
Overall Width
8 1/4 in
Width
125
Duct Diameter
4 in
Overall Depth
12 3/4 in
Profile Width Family
Single-Wide
Profile Height Family
Medium

Details

Voltage
120V AC
Mounting Location
Ceiling
CFM @ 0.100-In. SP
70 cfm
Includes
Mounting Brackets
Phase
1
Watts
125 W
Amps
1.2
Housing Material
Steel
Number of Speeds
1
Sones @ 0.100-In. SP @ 5 Ft.
1.5
Lighted
With Light
Heater
Without Heater
Motion Sensing
No
Profile
Medium
Requires
75W Lamp R30 (75PAR30L/H/10-120V)
Nominal RPM
1000 RPM
Night-Light
No
Standards
AMCA, cUL Listed, UL Listed
Hz
60 Hz
Humidity Sensing
No
Grille Material
Polymeric
Construction Material
Metal
Discharge
Horizontal
Item
Recessed Fan
Grille Color
White
Motor Type
Permanently Lubricated
Blower Wheel Material
Polymeric
Primary Light Wattage
75 W
Exhaust Airflow @ 0.250 in SP
56 cfm
Full Load Current
1.2 A
Includes Grill
Yes
Roomside Installation
No
Wattage
125 W
Mounting Orientation
Horizontal
Nameplate Voltage
120V AC
Maximum Coverage Area
65 sq ft
Duct Shape
Round
Primary Lighting Technology
Incandescent
Discharge Direction
Horizontal
Primary Light Type
75W, R30, BR30, PAR30L/PAR30LN
Maximum Noise Level
1.5 sones
Frequency
60 Hz
Vent Design
Ducted
Housing Finish
Galvanized
Noise Level @ 0.100 in SP @ 5 ft
2 sones
Number of Primary Lights
1
Includes Light Bulbs
No
Sensor Type
None
Exhaust Airflow @ 0.100 in SP
70 cfm

Description

Recessed Fan, Discharge Direction Horizontal, Duct Diameter 4 in, Duct Shape Round, Housing Finish Galvanized, Housing Material Steel, Heater Without Heater, Includes Mounting Brackets, Mounting Location Ceiling, Exhaust Airflow @ 0.100 in SP 70 cfm, Maximum Noise Level 1.5 sones, Noise Level @ 0.100 in SP @ 5 ft 2 sones, Maximum Coverage Area 65 sq ft, Number of Speeds 1, Overall Depth 12 3/4 in, Overall Height 6 7/8 in, Overall Width 8 1/4 in, Lighted With Light

Documents & Resources

Restrictions

This item has been restricted from sale in the following states: MA, NJ
