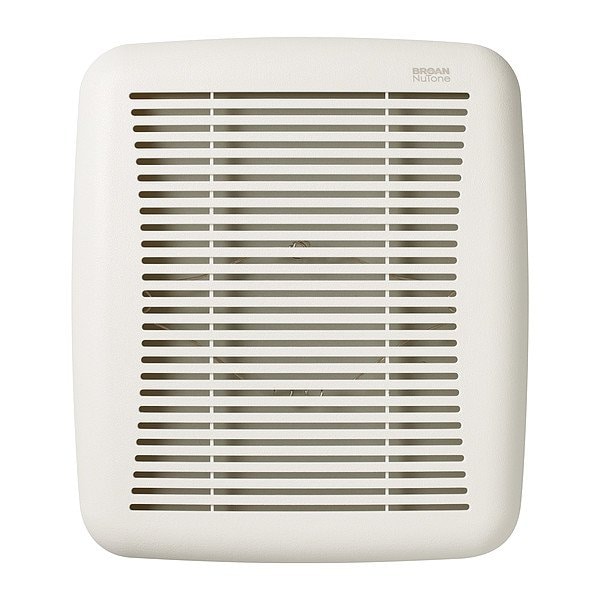

QuickKit replacement Motor and Cover
Mfr # BKR60
Zoro # G816664745
product price:Â $113.99
/ea
Free Shipping & Returns
Key Features
Full Load Current @ 60 Hz
1.2 A
Application
Fan/Blower
Sub Application
Venter
Compatible Manufacturer Part Number
670, 671, 688, 689, 690AC, 693, 695, 6950, 695C, 695CB, 696N, 696N0, 696NC, 696NCB, E050, E070, EC50, EC70, ECF50, ECF70, ECH600, N671, N688, VSBP50M, VSBP5XM, VSBX50M
Motor Thermal Protection
Impedance
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- BKR60
- Zoro #
- G816664745
- UPC #
- 026715270439
- Country of Origin
- China
Dimensions
- Frame Size
- Non-Standard
- Wire Rope Length
- 10 3/4 in
- Shaft Diameter
- 1/4 in
Details
- Item
- QuickKit replacement Motor and Cover/Grille
- Full Load Current @ 60 Hz
- 1.2 A
- Application
- Fan/Blower
- Sub Application
- Venter
- Compatible Manufacturer Part Number
- 670, 671, 688, 689, 690AC, 693, 695, 6950, 695C, 695CB, 696N, 696N0, 696NC, 696NCB, E050, E070, EC50, EC70, ECF50, ECF70, ECH600, N671, N688, VSBP50M, VSBP5XM, VSBX50M
- Motor Thermal Protection
- Impedance
- Motor Design
- Shaded Pole
- Motor Shaft Rotation
- CW/CCW
- Includes
- Motor Mounting Plates, Pre-Assembled Motor and Blower Wheel, Replacement Cover/Grille, Scroll Band and Hardware
- Motor Enclosure Type
- Open Air Over
- Compatible Brand
- Broan NuTone
- Phase
- Single
- Product Type
- OEM Replacement Motor
- Nameplate Service Factor @ 60 Hz
- 1
- Number of Speeds
- 1
Description
QuickKit replacement Motor and Cover/Grille, Single Phase, Motor Design Shaded Pole, 1/100 hp HP, Nameplate RPM 1,250 RPM, No. of Speeds 1, Voltage 120V AC, Full Load Amps 1.2 A, Non-Standard Frame, Motor Service Factor 1, Motor Thermal Protection Impedance, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud
