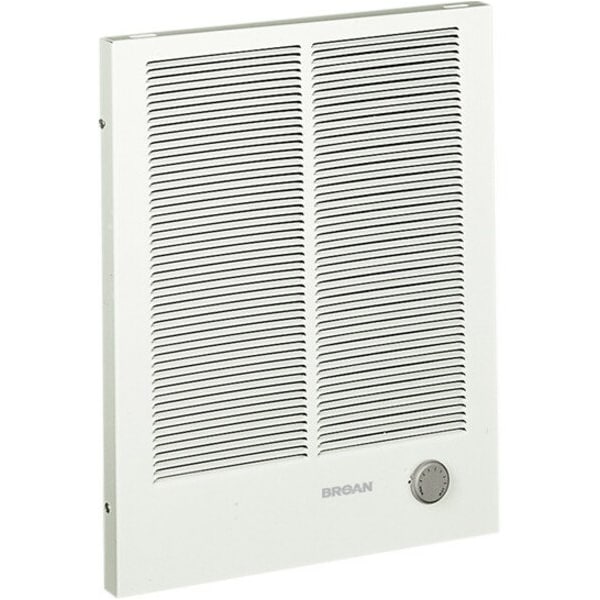

Broan-Nutone Recessed Electric Wall-Mount Heater, Recessed or Surface, 1500/3000, 2000/4000 W, 208/240V AC 198 - main

Recessed Electric Wall-Mount Heater, Recessed or Surface, 1500/3000, 2000/4000 W, 208/240V AC

  • Mfr # 198

  • Zoro # G1406036

product price:  $434.99
/ea
Free Shipping & Returns

Key Features

Electric Heater Item
Electric Wall Heater
Electric Heater Type
Commercial/Industrial
Watts
1500/3000, 2000/4000
BtuH
13,648/10,236
Heater Voltage
208/240 V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
198
Zoro #
G1406036
UPC #
026715022670
Country of Origin
United States

Dimensions

Wall Opening Width
14-1/4"
Wall Opening Depth
3-3/4"
Wall Opening Height
18"
Grille Depth
1 1/4 in
Grille Width
16 3/8 in
Housing Width
16 1/4 in
Housing Depth
4 1/4 in
Manufacturers Warranty Length
1 yr
Grille Height
20 1/4 in
Housing Height
20 in
Rough-In Width
16 1/4 in
Rough-In Depth
4 1/4 in
Rough-In Height
20 in
Rough-In Dimensions - H x W x D
7-3/4 in x 10-1/4 in x 3-3/4 in
Minimum Mounting Height from Floor
6 in

Details

Electric Heater Item
Electric Wall Heater
Electric Heater Type
Commercial/Industrial
Watts
1500/3000, 2000/4000
BtuH
13,648/10,236
Heater Voltage
208/240 V AC
Electric Heater Phase
1
Color
White
Amps AC
7.21/14.42, 8.33/16.67
Finish
Baked Enamel
Mounting Type
Recessed or Surface
Grille Material
18 ga Steel
Item
Recessed Electric Wall-Mount Heater
Standards
UL Listed
Features
Thermostat, Wattage Convertible, Overload Protector, Permanently Lubricated Motor
Hz
60
Application
Indoor
Voltage
208/240V AC
Phase
1
Disconnect Switch
Yes
Thermostat Included
Unit-Mounted
Thermal Overheat Protection
Manual Reset
Control Type
Mechanical Selector Dial
Grille Color
White
Voltage, Phase
208/240V AC, 1-Phase
Amperage
14.4 A, 16.7 A, 7.2 A, 8.3 A
Thermostat Contact Type
Single Pole
Heating Capacity
2,560/3,413 BtuH
Building Management System Compatible
No
Programming Capability
Not Programmable
Setback Control
No
Occupancy Sensor
No
Filter Included
No
Grille Finish
Enamel
Minimum Mounting Distance from Ceiling
6 in
Tamper Resistant
No
Heating Method
Fan Forced
Heater Mounting Position
Horizontal Burn
Remote Control Functions
No Remote Control Included
Smart Connectivity
No Connectivity
Housing Material
Steel
Hold Function
No
Frequency
60 Hz
Automatic Fan Delay (On/Off)
No
Fan Only Operation
No
Wattage Output
1500 W/3000 W, 2000 W/4000 W

Description

Recessed Electric Wall-Mount Heater, Commercial/Industrial, 1500/3000, 2000/4000 Watts, 3840/7680, 5120/10,240 BtuH, Heater Voltage 208/240 V AC, Electric Heater Phase 1, Wall Opening Width 14-1/4 In., Color White, 7.21/14.42, 8.33/16.67 Amps AC, Wall Opening Depth 3-3/4 In., Wall Opening Height 18 In., Mounting Type Recessed, 60 Hz, Grille Material 18 ga Steel, Grille Width 16 3/8 in, Grille Depth 1 1/4 in, Grille Height 20 1/4 in, Housing Width 16 1/4 in, Housing Depth 4 1/4 in
