  9. Flowmeter, Air, 2 to 25 SCFH, Glass
Shop All Flowmeters
Brooks

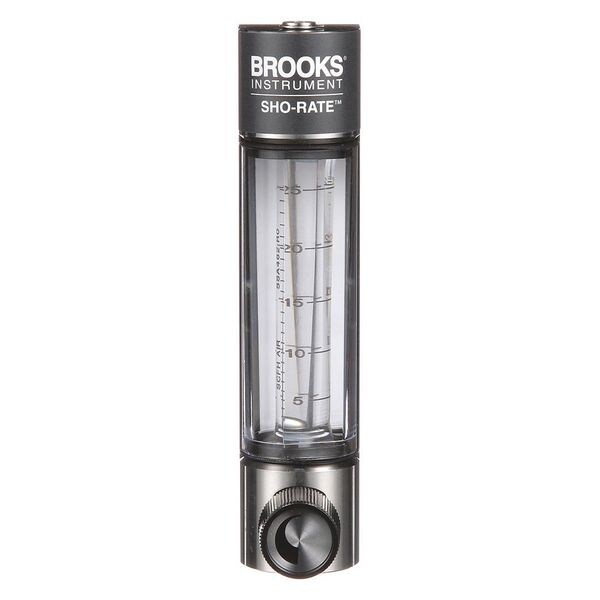

Flowmeter, Air, 2 to 25 SCFH, Glass

product price: $319.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Variable Area
  • Housing Material Aluminum
  • For Pipe Size 2 11/20 in
  • Flow Material Air
  • Connection Size 1/8 in
See all product information

Product Information

  • Brand Brooks
  • MFR # 1250AD6073AFSVV
  • Zoro # G4575435
  • Country of Origin United States
  • Category Flowmeters

Dimensions

For Pipe Size 2 11/20 in
Connection Size 1/8 in
Width (In.) 1-1/4"
Manufacturers Warranty Length 1 yr
Connection Size (In.) 1/8 FNPT
Height 5 1/2 in
Height (In.) 5-1/2
Width 1 1/4 in
Overall Length 2.3 in
Manufacturer Warranty Length 1 yr
Overall Height 5.5 in
Overall Width 1.3 in

Details

Item Mechanical Flowmeter
Type Variable Area
Housing Material Aluminum
Flow Material Air
Connection Type FNPT
Max. Pressure 200 psi
Max. Viscosity 79.8 SUS
Wetted Materials 316 Stainless Steel, Borosilicate Glass, Clear Polycarbonate, PTFE, Viton
Flow Range 2 to 25 SCFH
Fitting Stainless Steel
Fluid Temp. Range 40 Degrees to 200 Degrees F
Seal Material Viton
Flow Range @ SCFH 2 to 25
O-Ring Viton
Chamber Material Glass
Max. Pressure (PSI) 200
Accuracy (%) +/-5
Flow Range @ SCFH of Air 2 to 25
Max. Temp. (F) 200
Output Type Scaled Pulse
Display Type Scale
Standards International Calibration Certificate (ICC)
Product Type Flow Meter
Viscosity - Maximum 79.8 SUS
Includes Pressure Gauge No
O-Ring Material Viton
Unit Of Measure Liters
Media Temperature - Minimum 33 Degrees F
Accuracy +/-5%
Includes Flow Rate Adjustment Knob Yes
Flowmeter Type Variable Area
Flow Rate - Minimum 2.5 scfh
Wetted Material Stainless Steel
Media Temperature - Maximum 250 Degrees F
Compatible Flow Material Air
Operating Pressure - Maximum 200 psig
Flow Rate - Maximum 25 scfh
Includes Totalizer No
Mounting Orientation Vertical

Description

Mechanical Flowmeter, Product Type Flow Meter, Flowmeter Type Variable Area, Accuracy +/-5 Percent, Connection Size 1/8 in, Connection Type FNPT, Compatible Flow Material Air, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum 33 Degrees F, Viscosity - Maximum 79.8 SUS, Voltage - Maximum Not Applicable, Housing Material Aluminum, Rotor Material Not Applicable, O-Ring Material Viton, Seal Material Viton, Shaft Material Not Applicable, Wetted Material Stainless Steel

Restrictions

  • *** This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
