  9. Flowmeter, 50 PSI, 40 GPM, Digital, Pulse
Shop All Flowmeters
Fill-Rite

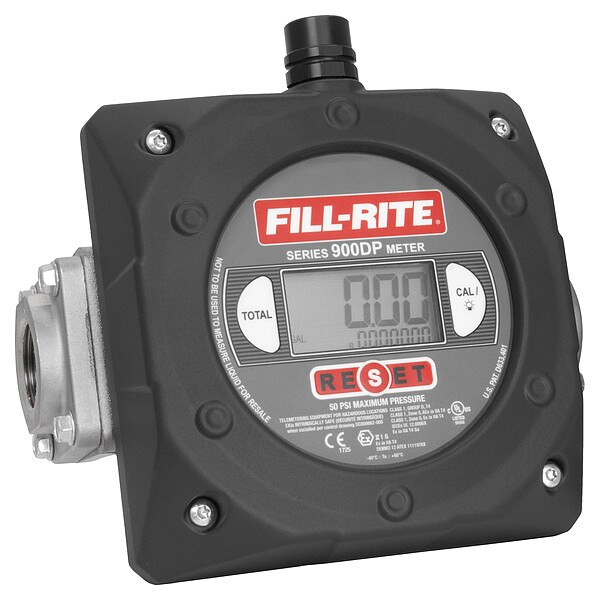

Flowmeter, 50 PSI, 40 GPM, Digital, Pulse

product price: $535.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Liquid
  • Housing Material Aluminum
  • For Pipe Size 1 in
  • Flow Material B20, Diesel, E15, Gasoline, Kerosene
  • Connection Size 1 in
See all product information

Product Information

  • Brand Fill-Rite
  • MFR # 900CDPX
  • Zoro # G4315556
  • UPC #
    089404223789
  • Country of Origin United States
  • Category Flowmeters

Dimensions

For Pipe Size 1 in
Connection Size 1 in
Connection Size (In.) 1 NPT
Manufacturers Warranty Length 2 yr
Height (In.) 6-1/2
Width 7 1/2 in
Length (In.) 10-1/2"
Width (In.) 7-1/2"
Length 10 1/2 in
Height 6 1/2 in
Overall Height 6.5 in
Overall Length 4 in
Manufacturer Warranty Length 2 yr
Overall Width 7.5 in

Details

Item Mechanical Flowmeter
Type Liquid
Housing Material Aluminum
Flow Material B20, Diesel, E15, Gasoline, Kerosene
Connection Type FNPT
Max. Pressure 50 psi
Wetted Materials Aluminum, Buna-N, Fluorocarbon, Nickel, PTFE, Ryton(R), Stainles Steel
Max. Viscosity 50 SUS
Flow Range 6 to 40 gpm
Fitting Brass
Fluid Temp. Range -40 Degrees to 140 Degrees F
Flow Range @ GPM/LPM 6 to 40 / 23 to 150
Seal Material Buna-N
Application Agriculture, Construction, Industrial, Mining, Municipalities
Flow Range @ GPH 360 to 2400
Accuracy (%) +/-1.25
Output Pulse
GPM Max. 40 gpm
Display Digital
Master Totalizer 999,999 gal
Thread NPT
Pressure Drop - 100% Flow (PSI) 11.0 psi
Agency Compliance UL Listed
Chamber Material Polypropylene
Max. Pressure (PSI) 50
O-Ring Buna
Pulses per Gallon 10 pulses/gal
Resetable Cumulative Totalizer 9,999 gal
Max. Viscosity (SSU) 50
Flow Range (GPM) 6 to 40
Pressure Drop - 50% Flow (PSI) 2.5 psi
Max. Temp. (F) 176
Output Type Standard Frequency Pulse
Shaft Material Stainless Steel
Display Type Digital
Standards ATEX, cULus Listed
Product Type Digital Fuel Transfer Meter
Media Temperature - Maximum 140 Degrees F
Flow Rate - Maximum 40 gpm
Pulse Rate 10 pulses/gal
Rotor Material PPS
Media Temperature - Minimum -40 Degrees F
O-Ring Material Buna-N
Wetted Material Aluminum, Buna-N, Viton, Nickel, PTFE, Ryton, Stainless Steel
Mounting Orientation Universal
Includes Flow Rate Adjustment Knob Yes
Flowmeter Type Paddlewheel
Includes Pressure Gauge No
Viscosity - Maximum 50 SUS
Includes Totalizer Yes
Flow Rate - Minimum 6 gpm
Operating Pressure - Maximum 50 psi
Unit Of Measure Gallons, Liters
Compatible Flow Material B20, Diesel, Gasoline, Solvents, Petroleum Fluids
Accuracy +/-1.25%

Description

Flowmeter, Liquid, GPM Max. 40, Max. Pressure (PSI) 50, Connection Size (In.) 1 NPT, Max. Temp. (F) 176, Length (In.) 10.5, Width (In.) 7-1/2, Height (In.) 6-1/2, Housing Material Aluminum, Fitting Brass, Chamber Material Polypropylene, Seal Material Buna N, Flow Range 6 to 40 gpm, Display Digital, Resetable Cumulative Totalizer 9999 Gallons, Max. Viscosity 50 SSU, Max. Viscosity (SSU) 50, For Pipe Size 1 In.
