Shop BROOKS

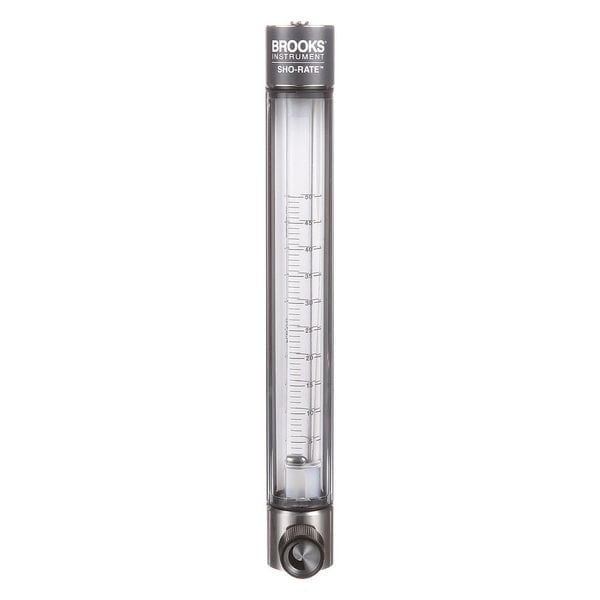

Flowmeter, Air, 2 to 50 LPM, Glass

  • Mfr # 1255AD1084ALSVV
  • Zoro # G4631252
product price:
$
364.99
/ea
Free Shipping & Returns

Key Features

Type
Variable Area
Housing Material
Aluminum
For Pipe Size
5 9/10 in
Flow Material
Air
Connection Size
1/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
1255AD1084ALSVV
Zoro #
G4631252
UPC #
-
Country of Origin
United States
Item
Mechanical Flowmeter
Type
Variable Area
Housing Material
Aluminum
Flow Material
Air
Connection Type
FNPT
Max. Pressure
200 psi
Max. Viscosity
79.8 SUS
Wetted Materials
316 Stainless Steel, Borosilicate Glass, Clear Polycarbonate, PTFE, Viton
Flow Range
2 to 50 LPM
Fitting
Stainless Steel
Fluid Temp. Range
40 Degrees to 200 Degrees F
Max. Pressure (PSI)
200
Max. Temp. (F)
200 Degrees F
O-Ring
Viton
Flow Range (LPM)
2 to 50
Chamber Material
Glass
Accuracy (%)
+/-3
Flow Range @ LPM of Air
2 to 50
Seal Material
Viton
Standards
International Calibration Certificate (ICC)
Display Type
Scale
Output Type
Scaled Pulse
Product Type
Flow Meter
Compatible Flow Material
Air
Media Temperature - Maximum
250 Degrees F
Unit Of Measure
Liters
Includes Flow Rate Adjustment Knob
Yes
Flowmeter Type
Variable Area
Operating Pressure - Maximum
200 psig
Media Temperature - Minimum
33 Degrees F
Flow Rate - Maximum
50 lpm
Includes Totalizer
No
Includes Pressure Gauge
No
O-Ring Material
Viton
Wetted Material
Stainless Steel
Flow Rate - Minimum
1 lpm
Accuracy
+/-3%
Viscosity - Maximum
79.8 SUS
Mounting Orientation
Vertical

Description

Mechanical Flowmeter, Product Type Flow Meter, Flowmeter Type Variable Area, Accuracy +/-3 Percent, Connection Size 1/8 in, Connection Type FNPT, Compatible Flow Material Air, Media Temperature - Maximum 250 Degrees F, Media Temperature - Minimum 33 Degrees F, Viscosity - Maximum 79.8 SUS, Voltage - Maximum Not Applicable, Housing Material Aluminum, Rotor Material Not Applicable, O-Ring Material Viton, Seal Material Viton, Shaft Material Not Applicable, Wetted Material Stainless Steel
