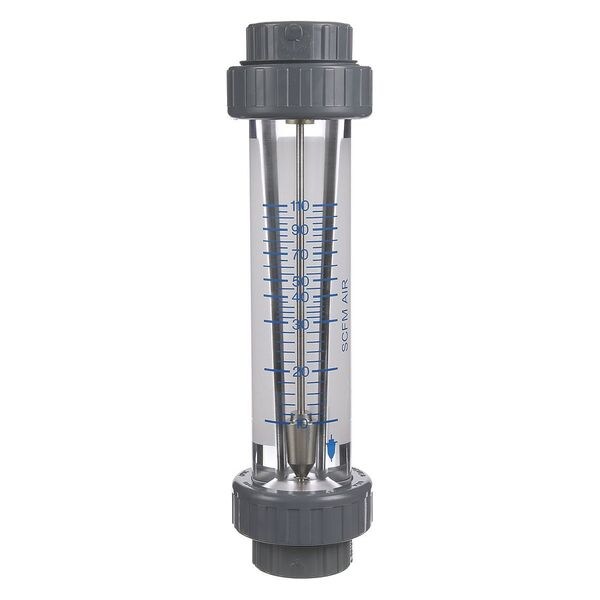

Flowmeter, Range @ SCFM of Air 10-110

BROOKS| Zoro #: G1778621| Mfr #: FR5A75PI

$531.96 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Temp.: -Width (In.): 3-1/2"Thread: -
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1778621 Mfr #: FR5A75PI
Temp.: -Width (In.): 3-1/2"
Thread: -Master Totalizer: -
Flow Range @ SCFM: 10 to 110Cable Length (Ft.): -
For Pipe Size: 1/8" to 1"Specific Gravity: -
O-Ring: VitonStandards: -
Flow Range @ SCFM of Air: 10 to 110GPM Max.: -
Seal Material: -Gauge/Conductor: -
Display: -Type: Variable Area
Height (In.): 3-1/2Max. Voltage: -
Manufacturers Warranty Length: -Depth: -
Length (In.): 13-3/8"Pressure Drop - 100% Flow (PSI): -
Resetable Cumulative Totalizer: -Shaft Material: -
Housing Material: AcrylicApplication: -
Includes: -Agency Compliance: -
Max. Viscosity (SSU): -Length: 13-3/8"
Center-Center Fitting Size: -Flow Range: 10 to 110 scfm
Max. Pressure (PSI): 100Center-Center Insert Size: -
Max. Temp. (F): 150Pressure Drop - 50% Flow (PSI): -
Chamber Material: AcrylicMax. Reed Switch Current (mA): -
Connection Size (In.): 1-1/2 FNPTItem: Mechanical Flowmeter
Accuracy (%): +/-5.0Max. Viscosity: 79.8 SSU
Flow Material: AirInsert: PVC
Fitting: PVCCountry of Origin (subject to change): United States

Description

Mechanical Flowmeter, Mechanical Flowmeter, For Pipe Size 1/8 In. to 1 In., Connection Size 1-1/2 In., Connection Type FNPT, Fluid Temp. Range 40 Degrees to 150 Degrees F, Wetted Materials Clear Acrylic, PVC, 316 Stainless Steel, Max. Pressure 50 psi, Flow Range 10 to 110 scfm, Max. Viscosity 79.8 SSU, Flow Material Air, Variable Area, GPM Max. -, Max. Voltage -, Length 13-3/8 In., Width 3-1/2 In., Height 3-1/2 In., Housing Material Acrylic, Fitting PVC, Chamber Material Acrylic, Seal Material -

Restrictions and Compliance

This product has been manufactured to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
***
This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
