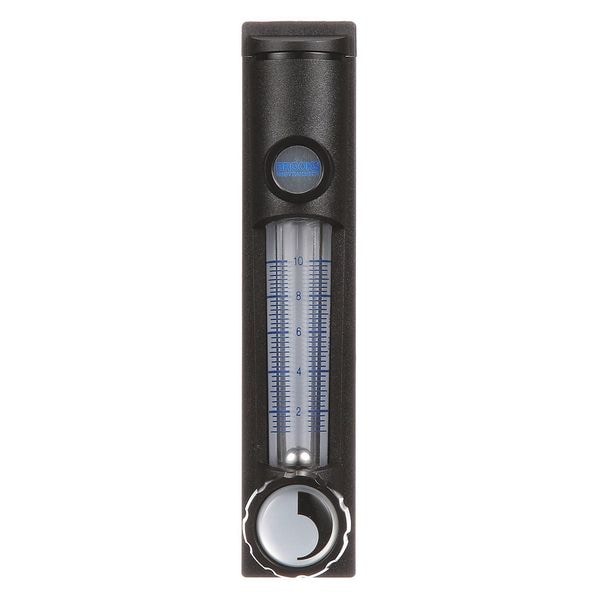

Flowmeter, Variable Area, LPM of Air 1-10

BROOKS| Zoro #: G2475794| Mfr #: MR3A15SVVT

$64.65 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2475794 Mfr #: MR3A15SVVT
Max. Temp. (F): 150Max. Pressure (PSI): 100
Height (In.): 4-9/16Chamber Material: Polycarbonate
Accuracy (%): +/-4.0Housing Material: Polycarbonate
Connection Size (In.): 1/8 FNPTType: Variable Area
Item: Mechanical FlowmeterLength (In.): 1-1/2"
Width (In.): 1"Fitting: Stainless Steel
Max. Viscosity: 79.8 SSUInsert: Stainless Steel
Flow Material: AirFlow Range @ LPM of Air: 1 to 10
O-Ring: VitonGPM Max.: -
Master Totalizer: -Gauge/Conductor: -
Resetable Cumulative Totalizer: -Flow Range (LPM): 1 to 10
Manufacturers Warranty Length: -Depth: -
Specific Gravity: -Thread: -
Cable Length (Ft.): -For Pipe Size: 1/8" to 1"
Max. Reed Switch Current (mA): -Shaft Material: -
Application: -Center-Center Insert Size: -
Seal Material: -Includes: -
Center-Center Fitting Size: -Max. Viscosity (SSU): -
Display: -Standards: -
Temp.: -Pressure Drop - 100% Flow (PSI): -
Agency Compliance: -Flow Range: 1 to 10 lpm
Max. Voltage: -Pressure Drop - 50% Flow (PSI): -
Country of Origin (subject to change): United States

Product Description

Flowmeter, Variable Area, Max Pressure 100 PSI, Connection Size (In) 1/8 FNPT, Max Temp 150 F, Housing Material Polycarbonate, Chamber Material Polycarbonate, Flow Range @ LPM of Air 1-10, Max Viscosity 16.4 CST, Stainless Steel Fitting, Viton O-Ring, Accuracy +/-4 %

Restrictions and Compliance

This product has been manufactured to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
***
This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
