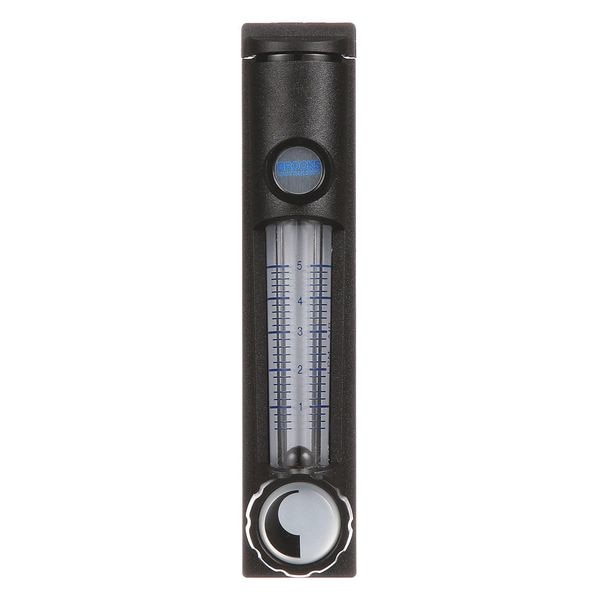

Flowmeter, Variable Area, LPM of Air .4-5

BROOKS| Zoro #: G2250726| Mfr #: MR3A14BVBN

$59.92 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Pressure Drop - 50% Flow (PSI): -Shaft Material: -Max. Voltage: -
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G2250726 Mfr #: MR3A14BVBN
Pressure Drop - 50% Flow (PSI): -Shaft Material: -
Max. Voltage: -Pressure Drop - 100% Flow (PSI): -
Max. Viscosity: 79.8 SSULength (In.): 1-1/2"
Housing Material: PolycarbonateLength: 1-1/2"
Manufacturers Warranty Length: -Standards: -
For Pipe Size: 1/8" to 1"Chamber Material: Polycarbonate
Agency Compliance: -Seal Material: -
Item: Mechanical FlowmeterFlow Range @ LPM of Air: 0.4 to 5
Thread: -Depth: -
Max. Viscosity (SSU): -Temp.: -
Flow Range: 0.4 to 5 lpmGPM Max.: -
Type: Variable AreaFlow Range (LPM): 0.4 to 5
Max. Reed Switch Current (mA): -Width (In.): 1"
Height (In.): 4-9/16Display: -
Specific Gravity: -Master Totalizer: -
Insert: BrassCenter-Center Fitting Size: -
Cable Length (Ft.): -Connection Size (In.): 1/8 FNPT
Flow Material: AirFitting: Brass
Max. Temp. (F): 150Resetable Cumulative Totalizer: -
Center-Center Insert Size: -Gauge/Conductor: -
Max. Pressure (PSI): 100O-Ring: Buna
Application: -Includes: -
Accuracy (%): +/-4.0Country of Origin (subject to change): United States

Description

Mechanical Flowmeter, Mechanical Flowmeter, For Pipe Size 1/8 In. to 1 In., Connection Size 1/8 In., Connection Type FNPT, Fluid Temp. Range 40 Degrees to 150 Degrees F, Wetted Materials Brass, Buna, Polycarbonate, Max. Pressure 100 psi, Flow Range 0.4 to 5 lpm, Max. Viscosity 79.8 SSU, Flow Material Air, Variable Area, GPM Max. -, Max. Voltage -, Length 1-1/2 In., Width 1 In., Height 4-9/16 In., Housing Material Polycarbonate, Fitting Brass, Chamber Material Polycarbonate, Seal Material -

Restrictions and Compliance

This product has been manufactured to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
***
This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
