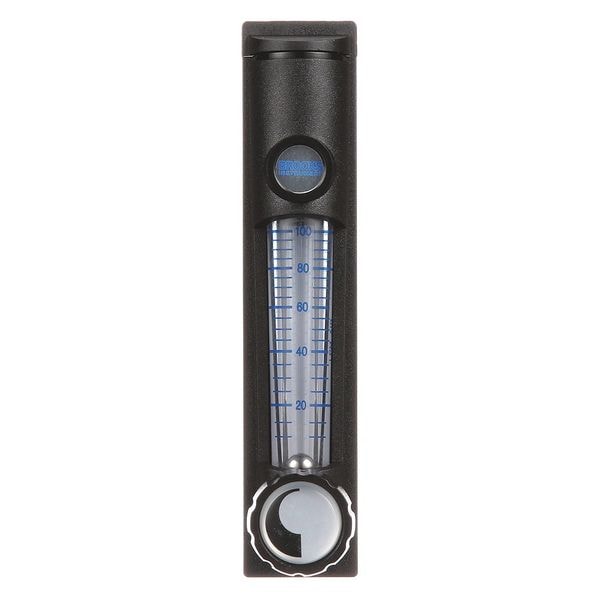

Flowmeter, Variable Area, LPM ofAir 10-100

BROOKS| Zoro #: G0362887| Mfr #: MR3A18SVVT

$65.95 /ea

This item ships free. Details.Standard ground shipping.
Details:
Type: Variable Area
Flow Range: 10 to 100 lpm
Accuracy (%): +/-4.0
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G0362887 Mfr #: MR3A18SVVT
Type: Variable AreaFlow Range: 10 to 100 lpm
Accuracy (%): +/-4.0Housing Material: Polycarbonate
Fitting: Stainless SteelLength: 1-1/2"
Width (In.): 1"Flow Range (LPM): 10 to 100
Insert: Stainless SteelFlow Range @ LPM of Air: 10 to 100
Height (In.): 4-9/16For Pipe Size: 1/8" to 1"
O-Ring: VitonMax. Temp. (F): 150
Chamber Material: PolycarbonateConnection Size (In.): 1/8 FNPT
Max. Pressure (PSI): 100Flow Material: Air
Length (In.): 1-1/2"Max. Viscosity: 79.8 SSU
Country of Origin (subject to change): United States

Description

Flowmeter, Variable Area, Max Pressure 100 PSI, Connection Size (In) 1/8 FNPT, Max Temp 150 F, Housing Material Polycarbonate, Chamber Material Polycarbonate, Flow Range @ LPM of Air 10-100, Max Viscosity 16.4 CST, Stainless Steel Fitting, Viton O-Ring, Accuracy +/-4 %

Restrictions and Compliance

This product has been manufactured to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
***
This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
