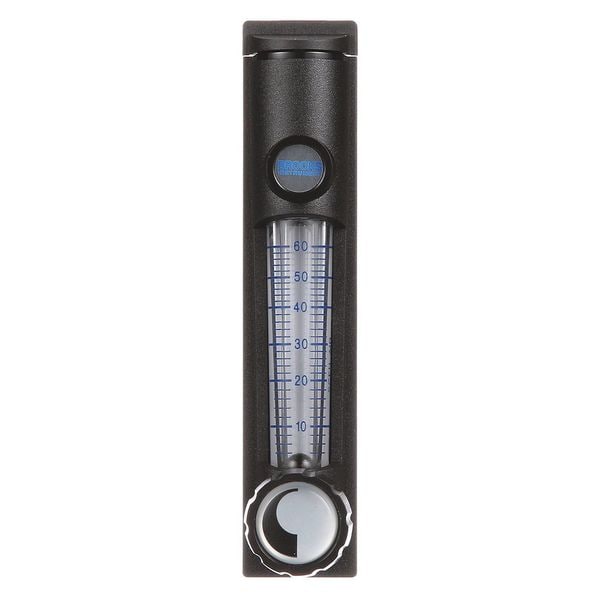

Flowmeter, Variable Area, SCFH of Air 4-60

BROOKS| Zoro #: G2311547| Mfr #: MR3A06BVBN

$55.60 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G2311547 Mfr #: MR3A06BVBN
Max. Temp. (F): 150Max. Pressure (PSI): 100
Height (In.): 4-9/16Chamber Material: Polycarbonate
Accuracy (%): +/-4.0Housing Material: Polycarbonate
Connection Size (In.): 1/8 FNPTType: Variable Area
Item: FlowmeterLength (In.): 1-1/2
Width (In.): 1Fitting: Brass
Max. Viscosity: 16.4 CSTInsert: Brass
Flow Range @ CCM of Water: -Flow Range @ GPH of Water: -
Flow Range @ SCFH of Air: 4 to 60Flow Material: Air
Flow Range @ LPM of Air: -O-Ring: Buna
Cable Length (Ft.): -Specific Gravity: -
Flow Range @ GPM of Water: -Flow Range @ SCFM: -
Application: -Temp.: -
Flow Range @ GPM/LPM: -Max. Reed Switch Current (mA): -
Max. Voltage: -Center-Center Insert Size: -
Flow Range @ SCFM of Air: -Pressure Drop - 100% Flow (PSI): -
Center-Center Fitting Size: -Pressure Drop - 50% Flow (PSI): -
Max. Viscosity (SSU): -Manufacturers Warranty Length: -
Includes: -Flow Range (LPM): -
Thread: -GPM Max.: -
Shaft Material: -Flow Range @ GPH: -
Gauge/Conductor: -Flow Range @ CCM of Air: -
Seal Material: -Flow Range @ SCFM/L/SEC: -
Flow Range: 4 to 60 scfhMaster Totalizer: -
Standards: -Flow Range (GPM): -
Flow Range @ CCM: -Depth: -
Resetable Cumulative Totalizer: -Agency Compliance: -
Display: -Flow Range @ SCFH: 4 to 60
Country of Origin (subject to change): Unknown

Product Description

Flowmeter, Variable Area, Max Pressure 100 PSI, Connection Size (In) 1/8 FNPT, Max Temp 150 F, Housing Material Polycarbonate, Chamber Material Polycarbonate, Flow Range @ SCFH of Air 4-60, Max Viscosity 16.4 CST, Brass Fitting, Buna O-Ring, Accuracy +/-4 %

Restrictions and Compliance

This product has been manufactured to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption).
This is a restricted item in CA, LA, MD, VT. It cannot be used for potable water applications.
